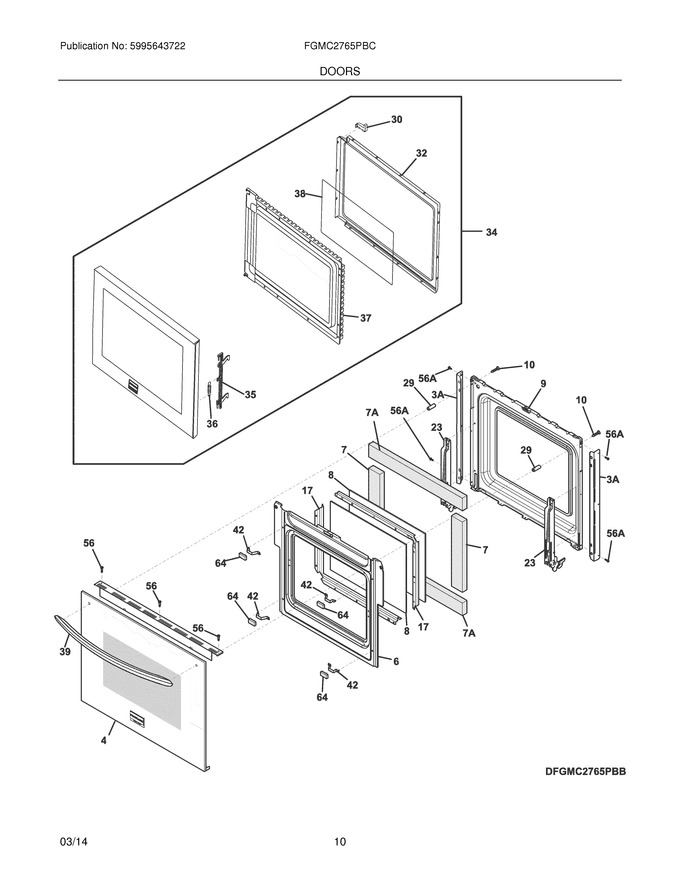

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	139023601		Trim,oven Door ,black ,upper				$ 47.78
4	808992605		Door Assembly,outer ,glass ,black ,w/trim & Badge		Appelez-nous	-
6	139014203		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door				$ 16.30
8	139085803		Glass,oven Door ,heat Barrier   (Replaces: 318212201)			Immediately	$ 108.45
9	139002905		Liner,oven Door			Immediately	$ 110.73
17	318264702		Spacer,glass ,(2)		Appelez-nous	-
23	316575902		Hinge,oven Door ,red				$ 102.38
29	139023400		Spacer,door Handle ,(2)				$ 20.48
30	5304442145		Door Stop		Appelez-nous	-
32	5304440861		Choke Cover,inner Door				$ 73.02
34	5304474854		Door Assembly,complete ,black ,w/badge		Appelez-nous	-
35	5304441893		Latch,door			Immediately	$ 48.91
36	5304440316		Spring,door Latch			Immediately	$ 61.00
37	5304440857		Panel,inner Door ,black				$ 192.29
38	5304440860		Seal,door ,film				$ 63.09
39	318927501		Handle Assembly,w/spacer ,black				$ 182.02
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
64	318165800		Spacer				$ 17.72
3A	139014401		Trim,oven Door ,black ,side ,(2) ,vented				$ 32.62
56A	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
7A	318372018		Insulation,20.5 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372015)				$ 14.18
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18

    View Diagram in Separate Window       Print Part List
