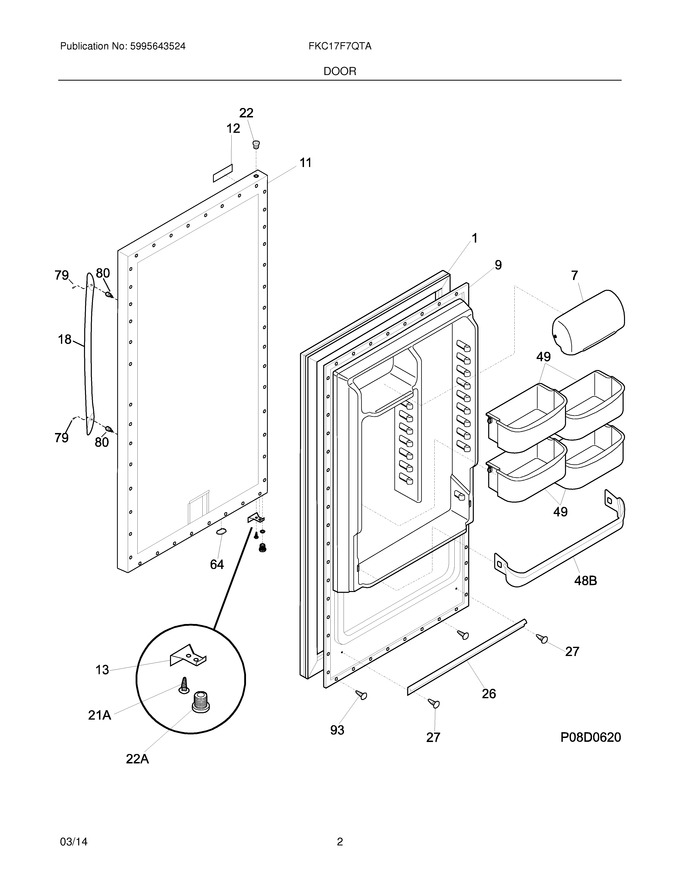

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507216 | Gasket,gray (Replaces: 216522373) |
|
$ 157.99 | |||||
| 7 | 240338313 | Door,dairy ,clear |
|
Immediately | $ 80.80 | ||||
| 9 | 216953600 | Panel-inner Door,refr |
|
$ 203.41 | |||||
| 11 | 297316563 | Panel-outer Door,titanium |
|
- | |||||
| 12 | 242016301 | Nameplate,frigidaire (Replaces: 297434600) |
|
$ 4.26 | |||||
| 13 | 297257002 | Door Stop,lh |
|
$ 15.22 | |||||
| 18 | 242059301 | Handle-door,stainless ,w/set Screws |
|
$ 219.03 | |||||
| 22 | 216970801 | Bearing,hinge ,gray ,top |
|
$ 4.25 | |||||
| 26 | 216524201 | Gasket,secondary |
|
$ 49.62 | |||||
| 27 | 5304472186 | Clip,panel Mtg |
|
$ 11.57 | |||||
| 49 | 216959802 | Bin-door,2-liter ,(4) |
|
Immediately | $ 83.49 | ||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base (Replaces: 216403701) |
|
$ 58.12 | |||||
| 79 | 218755402 | Screw-set,10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 216858001 | Screw,8-18x.50 Ab ,no.10 |
|
Immediately | $ 10.85 | ||||
| 21A | 297197500 | Screw,door Stop Mtg ,fh38-16x.750 ,p Twin |
|
$ 14.46 | |||||
| 22A | 297006800 | Bearing-hinge,btm, W/o`ring |
|
$ 12.29 | |||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 34.96 | ||||
| NI | 297410600 | Screw,8-18 X .500 |
|
Immediately | $ 3.55 | ||||
| NI | 297048000 | Screw,anchor ,no.8 ,white |
|
$ 12.05 | |||||
| NI | 297175300 | Wrench,allen |
|
$ 15.49 | |||||
| NI | 297257000 | Door Stop,chrome ,rh |
|
$ 16.63 | |||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 240537301 | Nut-anchor,door Hdl Screw |
|
$ 11.34 |
