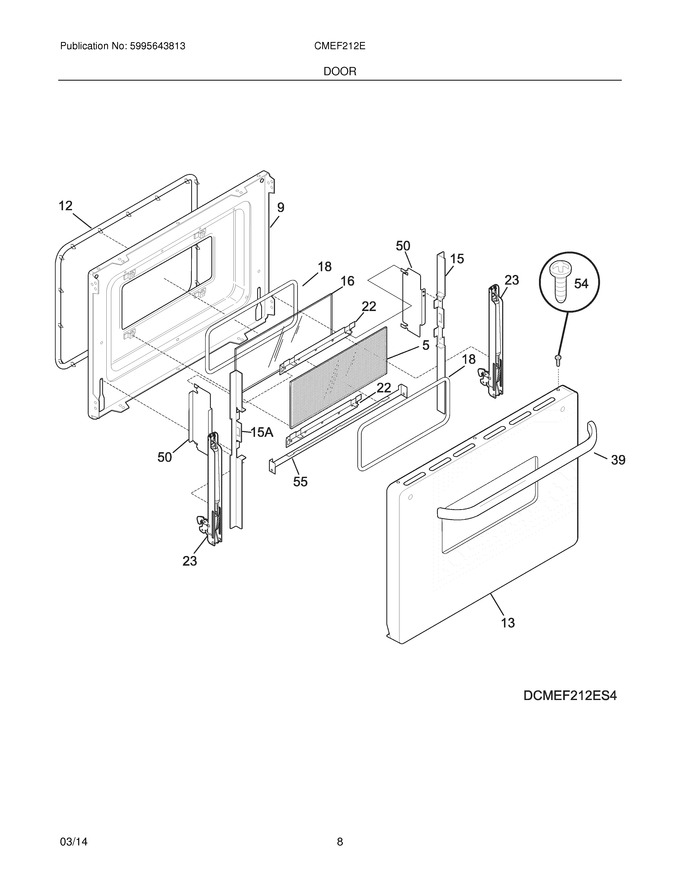

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	318381303		Glass-oven Door,front		Appelez-nous	-
9	318156419		Liner,oven Door		Appelez-nous	-
12	5303325040		Seal,oven Door				$ 96.34
13	318576403		Panel,door ,black ,outer		Appelez-nous	-
15	5303311153		Bracket,glass Mtg ,rs				$ 10.87
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
18	318053203		Gasket,door Glass Seal ,outer				$ 57.54
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318567104		Hinge,oven Door				$ 87.20
39	318362822		Handle Assembly,door ,black ,w/spacer				$ 104.05
50	318144900		Panel,side Brace ,glass		Appelez-nous	-
54	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
55	318122300		Bracket,glass Support				$ 11.39
15A	5303311154		Bracket,glass Mtg ,ls		Appelez-nous	-
NI	5304401361		Screw,8-18 X 0.750 ,black				$ 9.71
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303310536		Latch,oven Door				$ 30.66
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	08016432		Screw,truss Head ,8-18 X 3/8`` ,(7)		Appelez-nous	-
