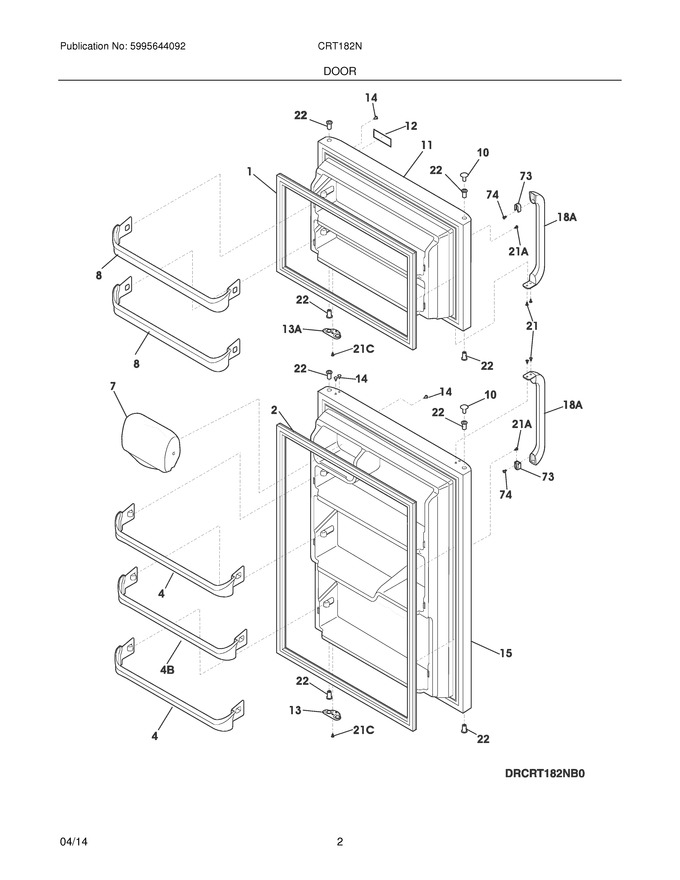

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
10 - Wiring Schematic
11 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193203 | Gasket-frzr Door,white ,magnetic |
|
Immediately | $ 197.62 | ||||
| 2 | 242193206 | Gasket-refr Door,white ,magnetic |
|
Immediately | $ 197.62 | ||||
| 4 | 240534901 | Rack-door |
|
Immediately | $ 47.03 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 36.41 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 49.62 | ||||
| 10 | 240381301 | Plug-button,white ,hinge Brg Hole ,(2) |
|
Immediately | $ 18.95 | ||||
| 12 | 242115801 | Nameplate |
|
- | |||||
| 13 | 240312421 | Door Stop,white ,ref (Replaces: 240312403) |
|
$ 15.17 | |||||
| 14 | 240494001 | Plug-button,white ,cab Liner Holes |
|
Immediately | $ 18.20 | ||||
| 14 | 240494001 | Plug-button,screw Type ,white (Replaces: 240428301) |
|
Immediately | $ 18.20 | ||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color (Replaces: 240527101) |
|
Immediately | $ 7.59 | ||||
| 13A | 240312414 | Door Stop,white ,frzr |
|
$ 19.13 | |||||
| 18A | 218428101 | Handle-door, White, W/block & Screw |
|
Immediately | $ 22.73 | ||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 4B | 240534701 | Rack-door,4b |
|
Immediately | $ 28.80 | ||||
| NI | 218515401 | Clip-grille |
|
$ 17.72 |
