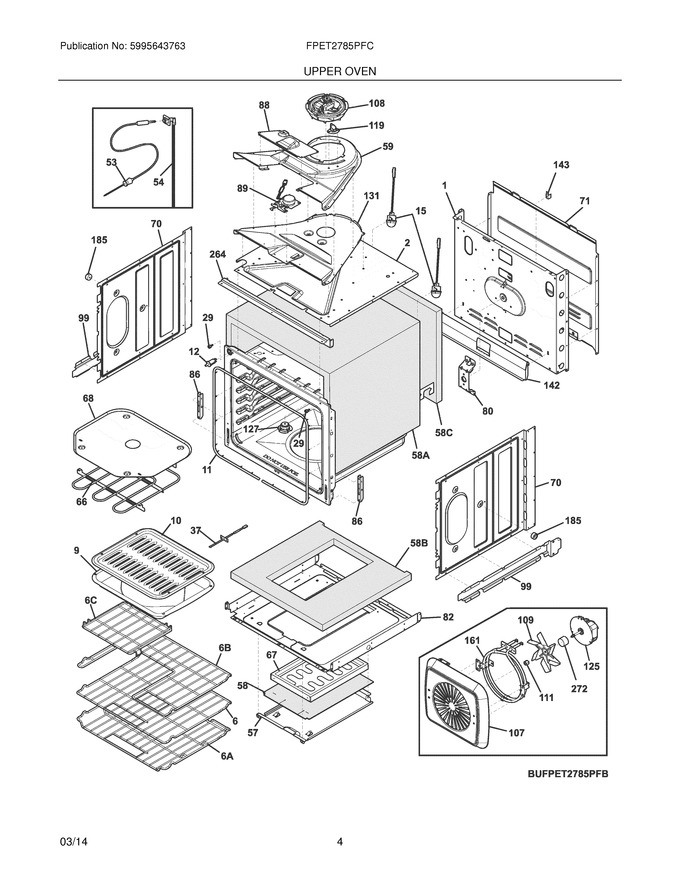

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139003802		Panel,main Back		Appelez-nous	-
2	139027800		Shield,insulation ,top		Appelez-nous	-
6	139011901		Rack,oven ,w/handle   (Replaces: 139011700)				$ 36.24
9	318138801		Pan,broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert,broiler Panoptional Access0ry		Appelez-nous	-
11	807545501		Seal,oven Door ,gray			Immediately	$ 81.39
29	316517600		Spacer,oven Door				$ 12.05
57	139021200		Panel,service ,bake Element				$ 32.31
58	139022100		Insualtion,bake Element		Appelez-nous	-
59	139027600		Duct,cooling Fan ,upper				$ 85.76
68	808807902		Shield,broil Element		Appelez-nous	-
70	139000601		Shield,insulation ,sides ,(2)   (Replaces: 139000600)				$ 72.05
71	139022000		Shield,rear Wire ,main Back		Appelez-nous	-
80	139021101		Bracket,support ,chassis/fan   (Replaces: 139021100)				$ 14.89
82	139003101		Shield,insulation ,lower				$ 91.01
86	318561100		Receptacle,hinge ,(2)				$ 21.23
88	5304506964		Cover,latch Motor   (Replaces: 139027900)				$ 24.10
99	139005201		Bracket,support ,side ,(2)		Appelez-nous	-
107	139013901		Cover,convection Fan		Appelez-nous	-
109	318398302		Blade,fan ,convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	5304538693		Tube Assembly,vent ,w/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct,cooling Fan ,lower				$ 73.00
142	139021800		Shield,air Deflector ,main Back		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	139003501		Trim,vent ,black ,front				$ 36.20
272	139021700		Tube,convection Fan				$ 17.72
58A	139001701		Insulation,oven Wrapper ,27`` ,top & Sides		Appelez-nous	-
58B	139021501		Insulation,oven Bottom				$ 31.19
58C	139021401		Insulation,oven Back		Appelez-nous	-
6A	139012500		Rack,oven ,offset ,w/handle				$ 88.72
6B	139012900		Rack,oven ,half ,w/handle		Appelez-nous	-
6C	139013000		Rack Insert,half Rack				$ 91.30
F108	318575612		Motor,cooling Fan			Immediately	$ 196.61
F119	318578506		Thermostat,cooling Fan ,105 Deg.			Immediately	$ 58.19
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F125	139008502		Motor,convection Fan				$ 139.48
F15	5304528790		Lamp Assembly,round ,halogen ,w/lens ,w/bulb   (Replaces: 139009000)			Immediately	$ 20.56
F161	8581390065036		Element,convection ,2500w   (Replaces: 139006500)				$ 47.63
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F53	5304504202		Probe,meat Temp ,red   (Replaces: 318601303)			Immediately	$ 106.19
F54	139017203		Receptacle Assy,meat Probe   (Replaces: 139017200)			Immediately	$ 153.09
F66	5304523477		Element,broil ,6 Pass ,3400w   (Replaces: 139028200)				$ 235.85
F67	318902502		Element,hidden Bake ,1450w			Immediately	$ 205.21
F89	139021302		Motor,latch Assy. ,2 Pole				$ 147.56
FNI	318231870		Wiring Harness,bake Element				$ 83.42
FNI	807048302		Wiring Harness,latch Motor ,upper Oven		Appelez-nous	-
FNI	318946500		Bulb,halogen ,g9 ,25w ,120v			Immediately	$ 60.44
NI	807597603		Screw,self Tapping ,8-18 X 11/32 ,(4)				$ 9.22
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	318579001		Bracket,wire				$ 11.08
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
