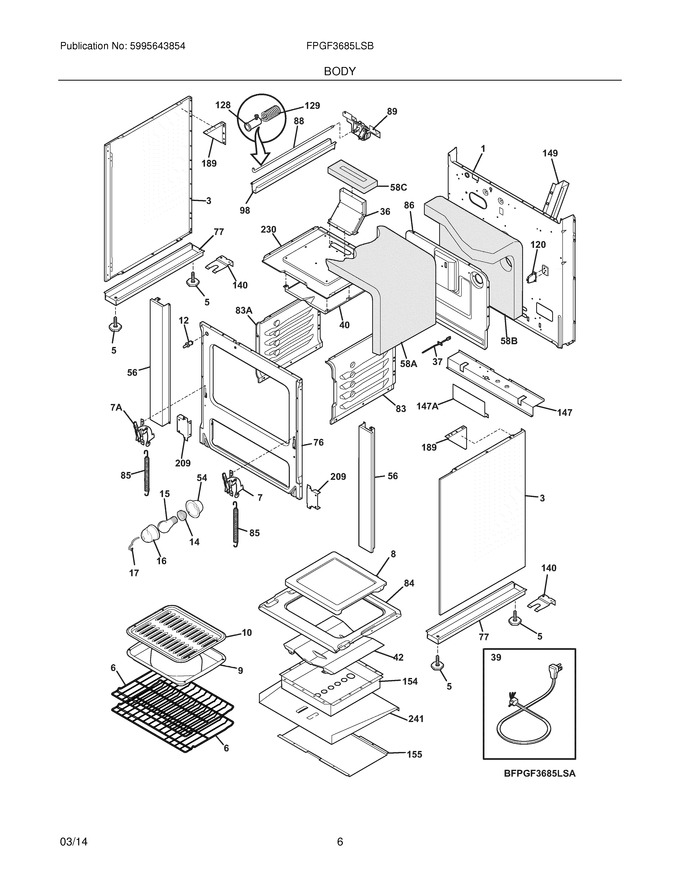

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318076305 | Back,main |
|
- | |||||
| 3 | 318317903 | Panel-bodyside,black |
|
$ 240.45 | |||||
| 5 | 318175510 | Screw,leveling ,w/tee Nut |
|
Immediately | $ 24.26 | ||||
| 6 | 318315810 | Rack,oven ,(2) |
|
- | |||||
| 7 | 318348800 | Hinge Assy,rh |
|
$ 74.09 | |||||
| 8 | 318135500 | Panel-oven Bottom Insert |
|
- | |||||
| 9 | 316081900 | Pan,broileroptional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert,broiler Panoptional Access0ry |
|
$ 68.85 | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 316538904 | Lamp,oven Light (Replaces: 316538901) |
|
Immediately | $ 20.48 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 318406100) |
|
Immediately | $ 15.61 | ||||
| 17 | 5303205904 | Clip,lamp Cover ,retainer |
|
$ 7.67 | |||||
| 36 | 318316100 | Box,flue Assy. |
|
- | |||||
| 39 | 5304534377 | Cord,service (Replaces: 318144008) |
|
$ 26.85 | |||||
| 40 | 318133301 | Baffle,broil Burner |
|
- | |||||
| 42 | 318168700 | Baffle,oven Burner |
|
- | |||||
| 54 | 5303271606 | Housing,oven Light |
|
- | |||||
| 56 | 318315200 | Trim,vertical ,stainless ,front ,(2) |
|
- | |||||
| 76 | 318320801 | Frame,oven ,front |
|
- | |||||
| 77 | 318166702 | Rail,base |
|
- | |||||
| 83 | 318134400 | Liner,oven ,rh |
|
- | |||||
| 84 | 318134700 | Frame,oven Bottom |
|
- | |||||
| 85 | 318088400 | Spring,oven Door ,(2) |
|
$ 116.03 | |||||
| 86 | 318135300 | Liner,oven ,back |
|
- | |||||
| 88 | 318118906 | Rod,latch |
|
- | |||||
| 98 | 318332800 | Channel,latch Rod |
|
- | |||||
| 120 | 3051096 | Support,oven Rear |
|
- | |||||
| 128 | 318563000 | Bushing,latch Rod |
|
$ 25.88 | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 140 | 5304405240 | Anti-tip Accessories |
|
- | |||||
| 147 | 318168401 | Support,safety Valve |
|
- | |||||
| 149 | 3131046 | Channel,wiring |
|
- | |||||
| 154 | 318076600 | Pan,oven Burner |
|
- | |||||
| 155 | 318160601 | Shield,door Lock ,btm |
|
- | |||||
| 189 | 318322800 | Angle,rear Plenum ,(2) |
|
- | |||||
| 209 | 5303286692 | Support,rail |
|
- | |||||
| 230 | 318134511 | Liner,oven |
|
- | |||||
| 241 | 318121201 | Retainer,btm Insullation |
|
- | |||||
| 58A | 807208301 | Insulation,wrapper ,top & Sides |
|
- | |||||
| 58B | 807295901 | Insulation,wrapper ,top & Back |
|
- | |||||
| 58C | 318594400 | Insulation,flue |
|
$ 23.39 | |||||
| 7A | 318348801 | Hinge Assy,lh |
|
$ 80.24 | |||||
| 83A | 318134401 | Liner,oven ,lh |
|
- | |||||
| 89No. | 318095960 | Motor,latch Assy |
|
- | |||||
| F12 | 318089916 | Switch,light |
|
$ 68.04 | |||||
| F147 | 08068039 | Support, Control Valve |
|
- | |||||
| F241 | 3201899 | Washer,flat |
|
- | |||||
| F37 | 5304504897 | Sensor,oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 48.13 | ||||
| FNI | 318224706 | Wiring Harness,chassis |
|
- | |||||
| FNI | 318231874 | Harness,wiring ,door Switch |
|
- | |||||
| NI | 318262301 | Bracket,front Support ,(2) |
|
- | |||||
| NI | 318531702 | Spacer |
|
$ 9.93 | |||||
| NI | 5303311528 | Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black |
|
- | |||||
| NI | 5303131801 | Screw, 10 X 3/8 |
|
- | |||||
| NI | 5303207651 | Spring,oven Door ,(1) |
|
- | |||||
| NI | 5304475833 | Screw,ground ,10-32x17/32 |
|
- | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 154079601 | Nut,keps ,10-24 (Replaces: 3201885) |
|
$ 0.41 | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 3051070 | Screw,hex Washer Head ,10-24 X 0.438 ,special |
|
- |
