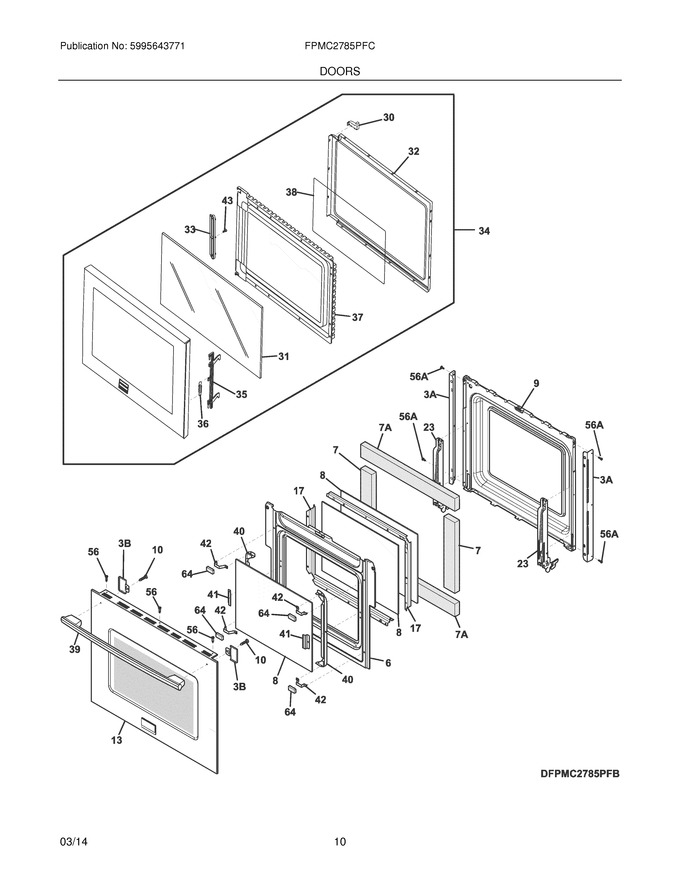

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139014203		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door				$ 16.30
8	139085803		Glass,oven Door ,heat Barrier   (Replaces: 318212201)			Immediately	$ 108.45
9	139002912		Liner,oven Door		Appelez-nous	-
10	5304472906		Screw,handle Mtg ,no.10-24 X 1.5 ,(2)				$ 8.98
13	808992604		Door Assembly,outer ,stainless ,w/trim & Badge				$ 251.62
17	318264702		Spacer,glass ,(2)		Appelez-nous	-
23	316575902		Hinge,oven Door ,red				$ 102.38
30	5304442145		Door Stop		Appelez-nous	-
31	5304472853		Panel,door Glass ,silver		Appelez-nous	-
32	5304440861		Choke Cover,inner Door				$ 73.02
33	5304440862		Stop,door Glass		Appelez-nous	-
34	5304475289		Door Assembly,complete ,stainless ,w/badge				$ 359.15
35	5304441893		Latch,door			Immediately	$ 48.91
36	5304440316		Spring,door Latch			Immediately	$ 61.00
37	5304472852		Panel,inner Door ,light Gray		Appelez-nous	-
38	5304440860		Seal,door ,film				$ 63.09
39	318919700		Handle,door/drawer ,stainless				$ 192.26
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Panel ,(2)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
43	5304452259		Screw		Appelez-nous	-
56	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
64	318165800		Spacer				$ 17.72
3A	139014401		Trim,oven Door ,black ,side ,(2) ,vented				$ 32.62
3B	318262104		Cover,rear Door ,black ,(2)				$ 24.99
56A	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
7A	318372018		Insulation,20.5 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372015)				$ 14.18
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
