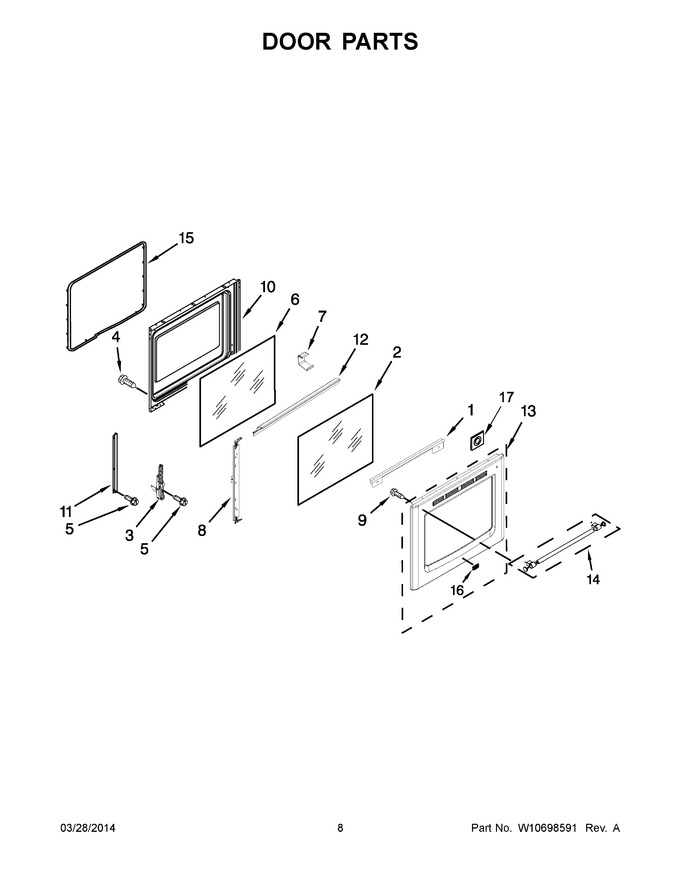

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10339814 | Trim, Vent (black) |
|
$ 139.33 | |||||
| 2 | W10615599 | Glass, Outer |
|
$ 118.66 | |||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 227.18 | |||||
| 7 | W10137382 | Clip, Panel |
|
Immediately | $ 41.50 | ||||
| 8 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 114.64 | |||||
| 9 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.26 | ||||
| 10 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 284.15 | ||||
| 11 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 12 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 203.18 | ||||
| 13 | WPW10655838 | Skin, Door (stainless) (Replaces: W10655838) |
|
Immediately | $ 319.98 | ||||
| 14 | WPW10665831 | Handle, Assembly (stainless) (Replaces: W10665831) |
|
$ 201.17 | |||||
| 15 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 16 | W10911300 | Badge (Replaces: W10636267) |
|
$ 69.01 | |||||
| 17 | W11190816 | Spacer, Handle (Replaces: 3823F017-45) |
|
$ 14.94 |
