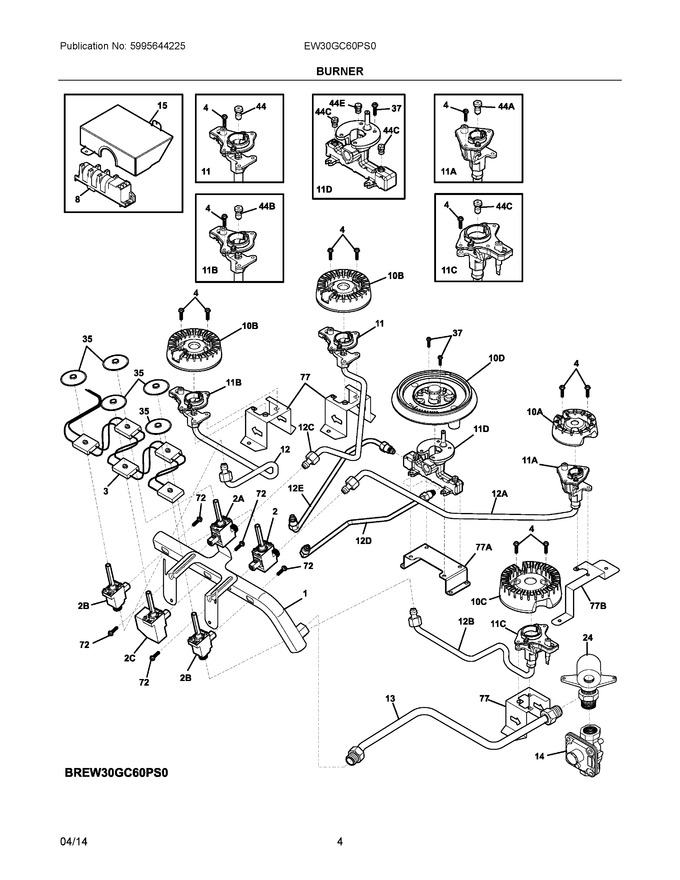

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318569804		Manifold, Pipe				$ 110.09
2	316271307		Valve, Top Burner, 5k		Appelez-nous	-
3	305595101		Switch Assembly, Ignitor, W/harness				$ 103.01
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
8	808608804		Module, Spark   (Replaces: 318079001)			Immediately	$ 76.06
11	316540704		Ignitor/orifice Assy., Top Burner, 7.5k, W/holder				$ 77.60
12	318560725		Tube, Burner, Lf				$ 41.32
13	318054517		Tube, Connection, Manifold				$ 118.55
14	318122717		Regulator, Pressure		Appelez-nous	-
15	318024209		Deflector, Spark Module				$ 21.16
24	318054010		Elbow, Fitting				$ 172.23
35	807164301		Bushing, Insulating		Appelez-nous	-
37	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 5.67
44	316527518		Orifice, Burner, 7.5k		Appelez-nous	-
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
77	318920309		Bracket, Burner Mtg, (3)		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10C	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10D	5304519952		Burner, Sealed, 18k, G5   (Replaces: 139029400)			Immediately	$ 94.80
11A	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
11B	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11C	316543208		Ignitor/orifice Assy., Top Burner, 14k				$ 68.75
11D	316440105		Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder				$ 146.01
12A	318560724		Tube, Burner, Rr				$ 37.38
12B	318560723		Tube, Burner, Rf				$ 39.69
12C	318560726		Tube, Burner, Lr, (2)				$ 37.38
12D	809112201		Tube, Center Burner		Appelez-nous	-
12E	809112301		Tube, Center Burner		Appelez-nous	-
2A	316271310		Valve, Top Burner, 9.5k				$ 97.82
2B	316560902		Valve, Burner, 17k, (2)				$ 72.80
2C	316272302		Valve, Dual Burner, Twin				$ 220.97
44A	316527504		Orifice, Burner, 5k				$ 22.68
44B	316527500		Orifice, Burner, 9.5k				$ 21.40
44C	316527502		Orifice, Burner, 12k				$ 22.68
44E	316527520		Orifice, Top Burner, Simmer				$ 15.60
77A	305583001		Bracket, Burner, Dual				$ 10.66
77B	318920304		Bracket, Burner Mtg		Appelez-nous	-
NI	305338702		Screw, (4)		Appelez-nous	-
NI	808695305		Lp Conversion Kit		Appelez-nous	-
NI	305338602		Screw, (15)		Appelez-nous	-
NIA	803910601		Screw		Appelez-nous	-
NIA	318199789		Wiring Harness, Ignitor				$ 107.26
NIB	305338601		Screw, (2)				$ 4.26
NIC	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIDA	316566901		Sleeve, Insulator				$ 12.89
