SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop

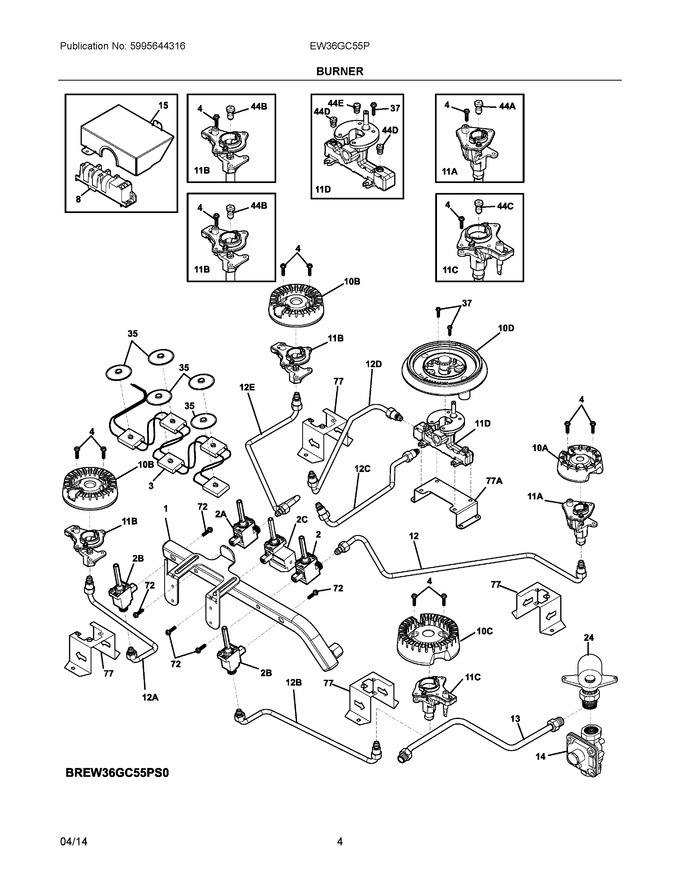

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305595300		Manifold, Pipe				$ 114.29
2	316271312		Valve, Top Burner, 5k				$ 95.97
3	305595103		Switch Assembly, Ignitor, W/harness				$ 112.09
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
8	808608804		Module, Spark   (Replaces: 318079001)			Immediately	$ 76.06
12	305596000		Tubing, Top Burner, Rh Rear		Appelez-nous	-
13	305596100		Pipe, Manifold Inlet		Appelez-nous	-
14	318122706		Regulator, Pressure				$ 114.83
15	318024209		Deflector, Spark Module				$ 21.16
24	318054010		Elbow, Fitting				$ 172.23
35	807164301		Bushing, Insulating		Appelez-nous	-
37	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 5.67
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
77	318920309		Bracket, Burner Mtg, (3)		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10C	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10D	5304519952		Burner, Sealed, 18k, G5   (Replaces: 139029400)			Immediately	$ 94.80
11A	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
11B	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11C	316543204		Ignitor/orifice Assy., Top Burner, 14k				$ 12.33
11D	316440105		Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder				$ 146.01
12A	305595700		Tubing, Top Burner, Lh Front		Appelez-nous	-
12B	305595900		Tubing, Top Burner, Rh Front		Appelez-nous	-
12C	809112401		Tubing, Twin Burner		Appelez-nous	-
12D	809112501		Tubing, Twin Burner		Appelez-nous	-
12E	305595800		Tubing, Top Burner, Lh Rear		Appelez-nous	-
2A	316271310		Valve, Top Burner, 9.5k				$ 97.82
2B	316560902		Valve, Burner, 17k, (2)				$ 72.80
2C	316272300		Valve, Dual Burner, Twin				$ 204.12
44A	316527504		Orifice, Burner, 5k				$ 22.68
44B	316527500		Orifice, Burner, 9.5k				$ 21.40
44C	316527511		Orifice, Burner, 14k				$ 19.85
44D	316527502		Orifice, Burner, 12k				$ 22.68
44E	316527520		Orifice, Top Burner, Simmer				$ 15.60
77A	305583001		Bracket, Burner, Dual				$ 10.66
NI	134178901		Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	808695306		Lp Conversion Kit				$ 74.24
NI	318024207		Deflector, Quick Connect		Appelez-nous	-
NI	305338602		Screw, (15)		Appelez-nous	-
NI	305338702		Screw, (4)		Appelez-nous	-
NIA	803910601		Screw		Appelez-nous	-
NIA	318199780		Wiring Harness, Ignitor				$ 100.56
NIB	305338601		Screw, (2)				$ 4.26
NIC	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIDA	316566901		Sleeve, Insulator				$ 12.89

    View Diagram in Separate Window       Print Part List
