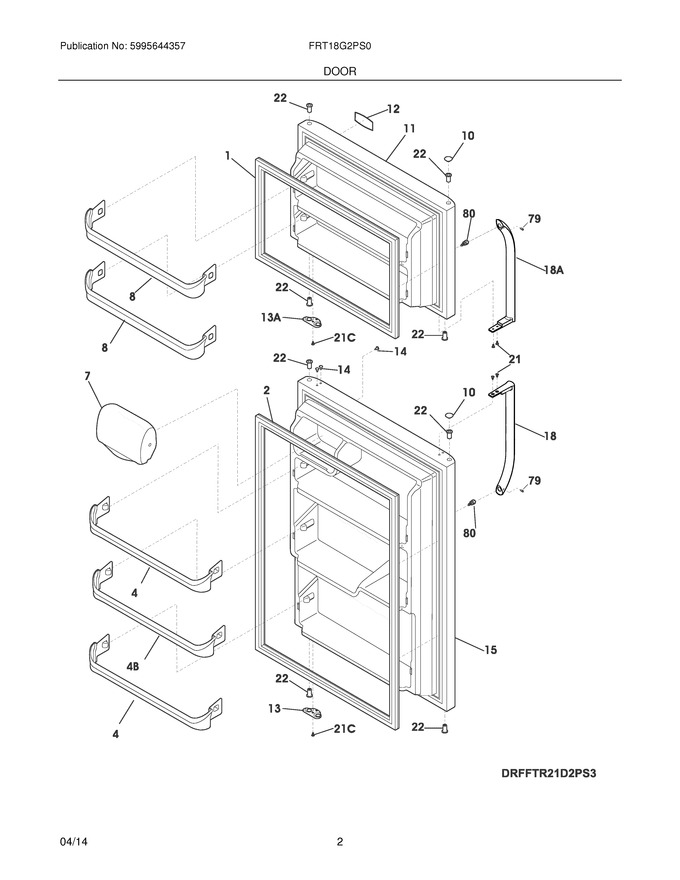

03 - Doors


05 - Cabinet


07 - Shelves


09 - System


10 - Wiring Schematic


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193209		Gasket-frzr Door,black ,magnetic			Immediately	$ 197.62
2	242193212		Gasket-frzr Door,black ,magnetic			Immediately	$ 191.86
4	240534901		Rack-door			Immediately	$ 47.03
7	240337712		Door-dairy			Immediately	$ 36.41
8	240534801		Rack-door			Immediately	$ 49.62
10	240381307		Plug-button,silver Mist ,hinge Brg Hole   (Replaces: 240381306)			Immediately	$ 16.69
11	240410206		Door-frzr,stainless ,complete Assy				$ 701.19
12	242016301		Nameplate,frigidaire				$ 4.26
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
14	240494001		Plug-button,white ,cab Liner Holes			Immediately	$ 18.20
15	242178112		Door-refr,stainless ,complete Assy   (Replaces: 240410309)				$ 597.57
18	242075501		Handle-door,stainless ,refr-rh/frzr-lh   (Replaces: 242075202)				$ 233.58
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
41	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 15.17
79	218755402		Screw-set,10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop,black ,frzr				$ 21.27
18A	242075501		Handle-door,stainless ,refr-lh/frzr-rh   (Replaces: 242075201)				$ 233.58
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
4B	240534701		Rack-door,4b			Immediately	$ 28.80
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
