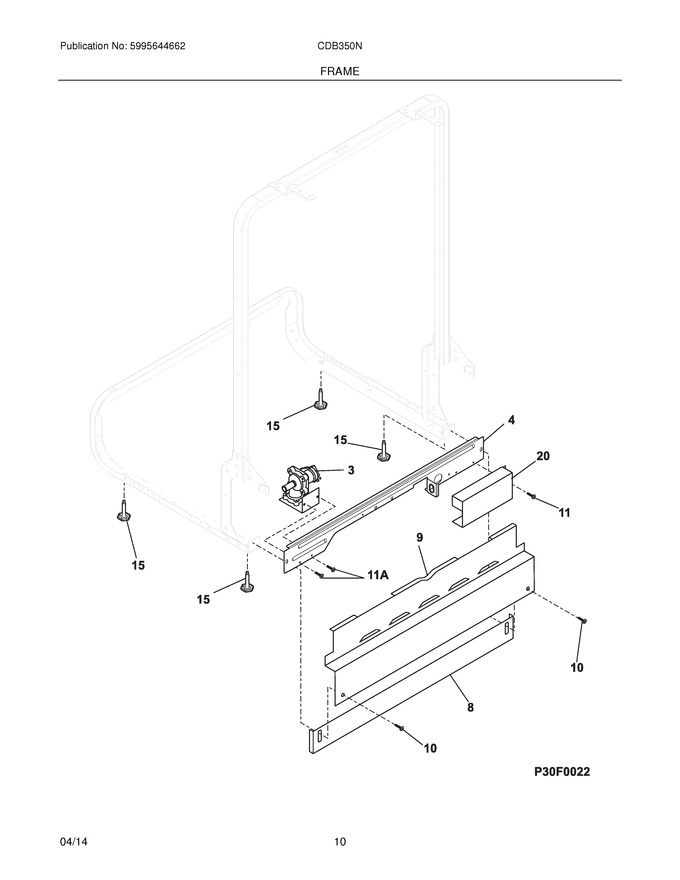

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304508587		Brace,front Frame   (Replaces: 154823701)				$ 28.92
8	154745501		Toeplate,adjustable ,white			Immediately	$ 21.27
9	5304501482		Kickplate Assy,white ,w/label   (Replaces: 154871201)				$ 51.08
10	154371301		Screw,phillips Head ,white			Immediately	$ 12.76
11	134154100		Screw-no.10-32 X 3/8   (Replaces: 154200701)				$ 13.46
15	5304506540		Leg,leveling ,(4)   (Replaces: 154571101)			Immediately	$ 10.85
20	154758501		Cover,junction Box ,w/label				$ 20.84
11A	808326801		Screw,hex Hd ,8-18 X .4 ,w/washer   (Replaces: 154825401)				$ 2.84
F3	154637401		Valve,water			Immediately	$ 21.36
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
