01 - Cover
03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
14 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

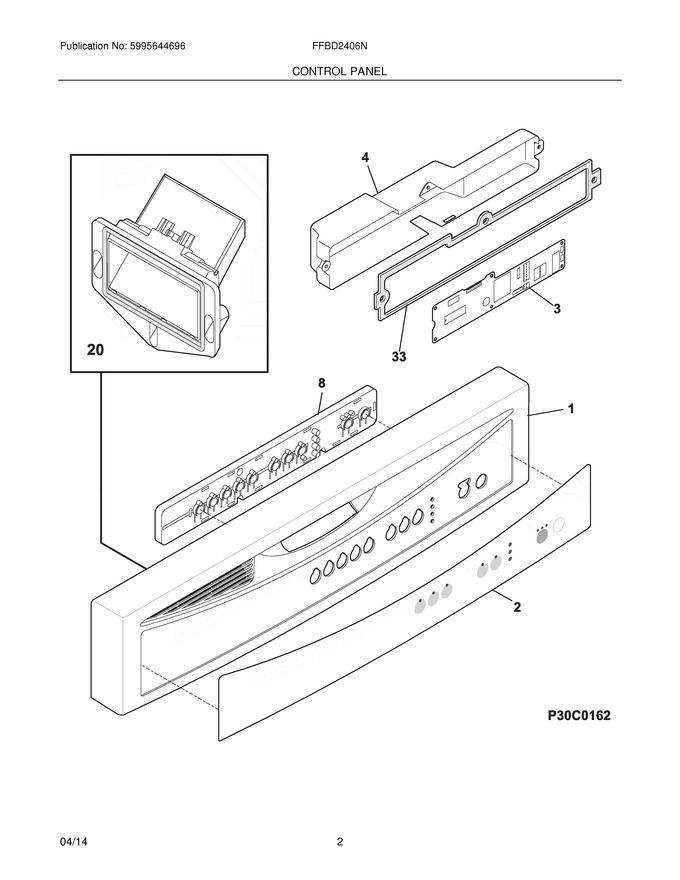

| 1 | 154788801 | Panel,console ,white ,10 Button |
|
$ 54.92 | |||||
| 2 | 154877801 | Overlay,console Panel ,white |
|
$ 61.22 | |||||
| 4 | 154552101 | Cover,control |
|
$ 57.17 | |||||
| 20 | 154433001 | Vent Assy,static Dry |
|
$ 50.82 | |||||
| 33 | 154553501 | Gasket,cover |
|
$ 42.34 | |||||
| F3 | 5304512731 | Board,control (Replaces: 807024702) |
|
Immediately | $ 138.42 | ||||
| F8 | 154887201 | Switch Assembly,7 Button |
|
Immediately | $ 83.86 | ||||
| FNI | 154879601 | Harness,wiring ,main |
|
- | |||||
| NI | 154783101 | Screw,plt ,8-10 |
|
Immediately | $ 7.09 | ||||
| NI | 808612213 | Energy Guide |
|
- | |||||
| NI | 154294701 | Screw,no.7 Plas .375 ,(6) ,disp. Assy. |
|
$ 9.22 | |||||
| NI | 154793401 | Screw,dry Duct ,(3) |
|
$ 7.09 |
