SELECT A DIAGRAM

01 - Cover


03 - Backguard

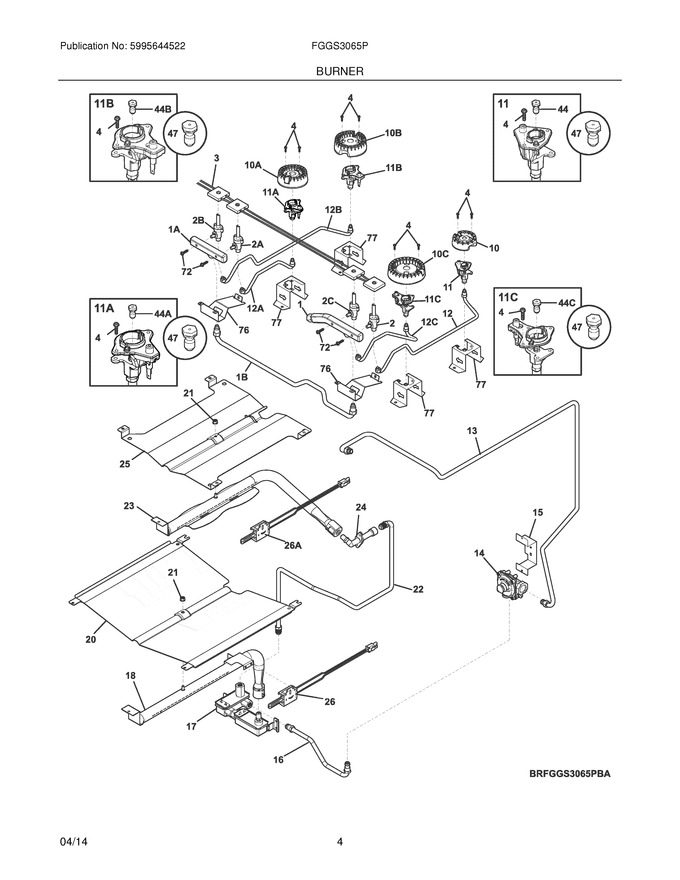

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
15	318262810		Bracket,regulator		Appelez-nous	-
20	139005100		Baffle,bake Burner				$ 95.68
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
25	316401301		Baffle,broil Burner				$ 173.57
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
76	318906703		Bracket,manifold ,(2)				$ 46.57
77	318920300		Bracket,burner Mtg ,(4)		Appelez-nous	-
F1	318913400		Manifold,right Side				$ 133.88
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10C	316438400		Burner,sealed ,17k			Immediately	$ 83.42
F11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11A	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F11B	316543206		Ignitor/orifice Assy.,top Burner ,14k ,w/holder				$ 146.71
F11C	316543203		Ignitor/orifice Assy.,top Burner ,17k ,w/holder				$ 12.20
F12	318916800		Tube,burner Supply ,rh Rear				$ 110.09
F12A	318916500		Tube,burner Supply ,lh Front				$ 47.78
F12B	318916600		Tube,burner Supply ,lh Rear		Appelez-nous	-
F12C	318916700		Tube,burner Supply ,rh Front				$ 51.74
F13	318913600		Tube,rgltr To Manf				$ 140.23
F14	316091711		Regulator,pressure   (Replaces: 316416705)			Immediately	$ 90.03
F16	318289500		Tube,regulator Valve				$ 75.84
F17	316031501		Valve,safety			Immediately	$ 296.26
F18	5304502520		Burner,bake   (Replaces: 139007000)				$ 173.66
F1A	318907200		Manifold,pipe ,lh				$ 115.03
F1B	318913500		Tube,connection ,manifold				$ 106.52
F2	318915700		Valve,top Burner ,5k				$ 69.04
F22	139009500		Tube,broil Supply				$ 71.59
F23	139007101		Burner,broil   (Replaces: 139007100)				$ 116.24
F24	316409703		Elbow,mixer				$ 138.70
F26	139013700		Ignitor,bake Burner			Immediately	$ 171.52
F26A	139013701		Ignitor,broil Burner				$ 170.81
F2A	318915702		Valve,top Burner ,9.5k   (Replaces: 318915701)				$ 72.87
F2B	318915703		Valve,top Burner ,14k				$ 76.97
F2C	318915704		Valve,top Burner ,16k/17k				$ 92.45
F3	318232659		Wiring Harness,w/igntr Switch				$ 100.59
F44	316527504		Orifice,burner ,5k				$ 22.68
F44A	316527500		Orifice,burner ,9.5k				$ 21.40
F44B	316527513		Orifice,top Burner ,14k				$ 22.05
F44C	316527509		Orifice,burner ,17k				$ 19.85
F47	GRLP4		Conversion Kit,lp   (Replaces: 318565405)			Immediately	$ 56.70
FNI	808041201		Harness,wiring ,oven Ignitors				$ 51.57
FNI	318199776		Wiring Harness,ignitor				$ 54.60
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316260800		Screw-shoulder,w/shoulder ,no.8-18 X 1/2``				$ 13.46
NI	316418901		Screw,trilobe ,10-32 X 5/16`` ,black				$ 14.18

    View Diagram in Separate Window       Print Part List
