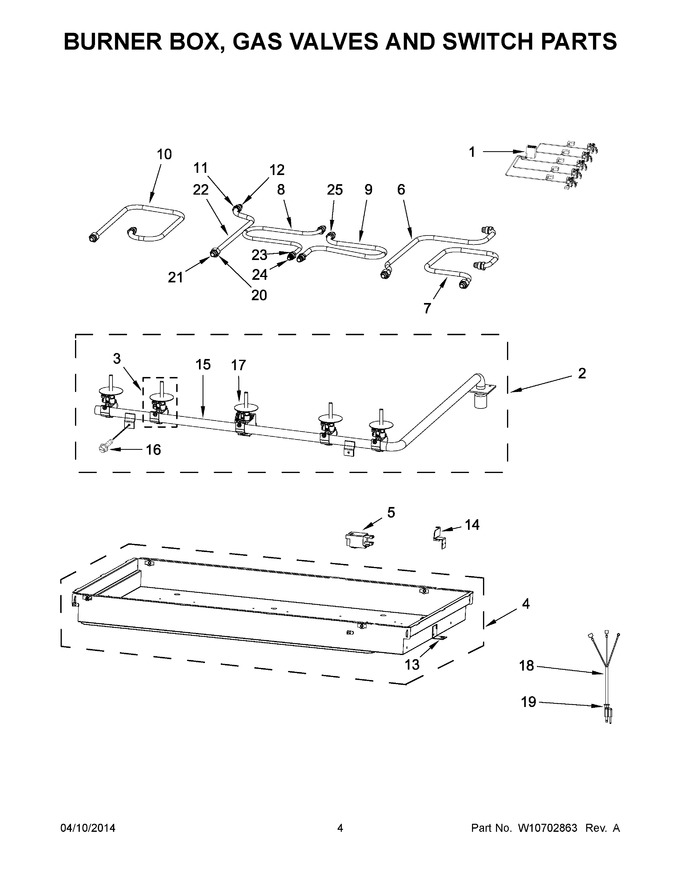

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10691446		Harness, Switch				$ 286.27
2	W10691441		Assembly, Manifold		Appelez-nous	-
3	W10691432		Valve, Gas (right Front)		Appelez-nous	-
3	W10691431		Valve, Gas (right Rear)				$ 161.75
3	W10691437		Valve, Gas (left Front, Left Rear)				$ 162.80
3	W10691438		Valve, Gas (center)				$ 315.20
4	W10691679		Assembly, Burner Box		Appelez-nous	-
5	W11601369		Spark Module   (Replaces: 8190929)			Immediately	$ 60.62
6	W10692359		Tubing, Burner (right Rear)		Appelez-nous	-
7	W10692360		Tubing, Burner (right Front)		Appelez-nous	-
8	W10692355		Tubing, Burner (1/4`` Center Simmer)		Appelez-nous	-
9	W10692356		Tubing, Burner (center)		Appelez-nous	-
10	W10692353		Tubing, Burner (left Front)		Appelez-nous	-
11	W10575399		Ferrule, Injector		Appelez-nous	-
12	W10575398		Nut, Injector		Appelez-nous	-
13	8190978		Bracket, Mounting				$ 81.04
14	W10617630		Bracket, Maintop				$ 69.39
15	W10617475		Bracket, Valve		Appelez-nous	-
16	W10617476		Screw, Valves		Appelez-nous	-
17	8190911		Washer (spark Switch)		Appelez-nous	-
18	W10392007		Cord, Power   (Replaces: W10618502)				$ 96.25
19	W10618504		Relief, Strain				$ 28.87
20	8190918		Nut, Compression		Appelez-nous	-
21	8190917		Sleeve, Compresson		Appelez-nous	-
22	W10692354		Tubing, Burner (left Rear)		Appelez-nous	-
23	W10692377		Nut, Compression 1/4`` Tubing		Appelez-nous	-
24	W10692371		Sleeve, Compression 1/4`` Tubing		Appelez-nous	-
25	W10692372		Nut, Compression		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10691233		Cap, Burner (melt Small Burner)				$ 319.72
NI	W10678586		Knob, Pro-style (set Of 5)				$ 151.57
NI	W10691448		Harness, Main		Appelez-nous	-
NI	W10625907		Screw, Burner Box Mounting (8-32 X 3/8`` Pan Head)				$ 20.40
NI	W10623148		Screw, Burner Box Mounting (10-32 X 1`` Pan Head)		Appelez-nous	-
NI	W10625904		Screw, Cooktop (6-32 X 3/8`` Pan Head)				$ 20.39
NI	W10626014		U-nut, Cooktop, Mounting		Appelez-nous	-
NI	W10625905		Screw, Manifold Pipe Mounting (8 X 3/8`` Pan Head)				$ 17.21
NI	W10686634		Kit, Orifice Lp Conversion				$ 274.42
NI	W10686630		Kit, Orifice Lp High Altitude Conversion				$ 69.69
NI	W10686629		Kit, Orifice Ng High Altitude Conversion		Appelez-nous	-
