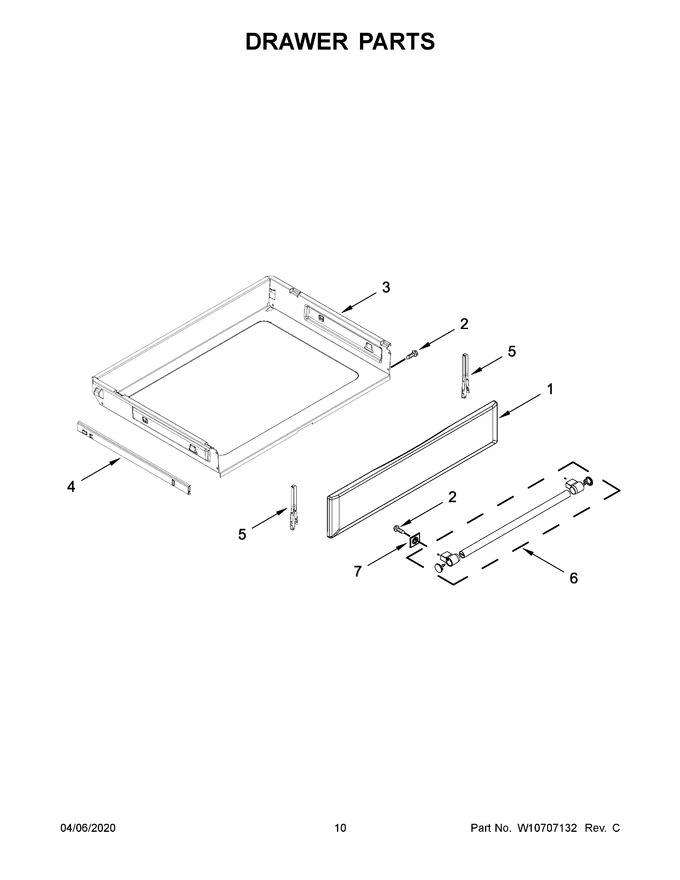

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10667934		Panel, Drawer (white)				$ 139.43
2	WP3196175		Screw   (Replaces: 3196165)				$ 6.47
3	W10813962		Drawer, Storage   (Replaces: W10688022)			Immediately	$ 124.34
4	WPW10441804		Slide, Drawer (left)   (Replaces: W10441804)			Immediately	$ 92.75
5	WPW10318027		Bracket, Drawer   (Replaces: W10318027)				$ 103.00
6	W10665830		Door Handle, Assembly (white)				$ 250.49
7	W11190816		Spacer, Handle   (Replaces: 3823F017-45)				$ 14.94
1A	W10667935		Panel, Drawer (black)				$ 140.13
1B	WPW10432480		Panel, Drawer (stainless)   (Replaces: W10432480)				$ 207.85
4A	WPW10441805		Slide, Drawer (right)   (Replaces: W10441805)			Immediately	$ 92.68
6A	W10665829		Door Handle, Assembly (black)		Appelez-nous	-
6B	WPW10665831		Door Handle, Assembly (stainless)   (Replaces: W10665831)				$ 201.17
