SELECT A DIAGRAM

01 - Cover Sheet

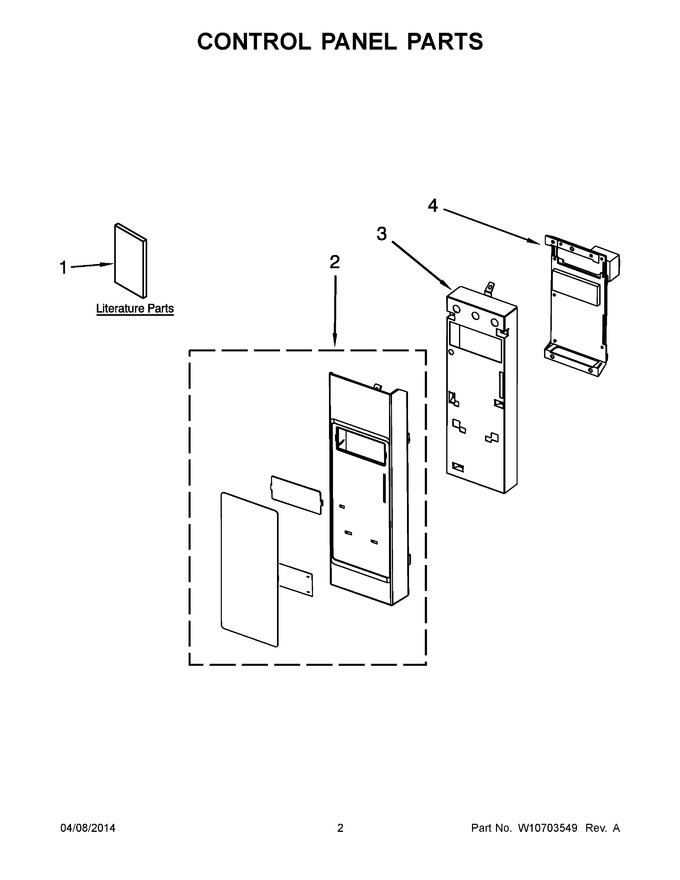

02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10344703		Installation Instructions		Appelez-nous	-
1	W10311671		Use And Care Guide		Appelez-nous	-
1	W10311675		Quick Reference Guide		Appelez-nous	-
1	W10498622		Tech Sheet		Appelez-nous	-
2	W10335296		Control Panel Assembly (includes Lens And Membrane Switch) (white)				$ 285.81
2	W10335295		Control Panel Assembly (includes Lens And Membrane Switch) (black)				$ 308.11
2	W10335298		Control Panel Assembly (includes Lens And Membrane Switch) (stainless)				$ 304.88
3	W10247749		Bracket, Control				$ 145.56
4	W10605907		Microcomputer				$ 120.67

    View Diagram in Separate Window       Print Part List
