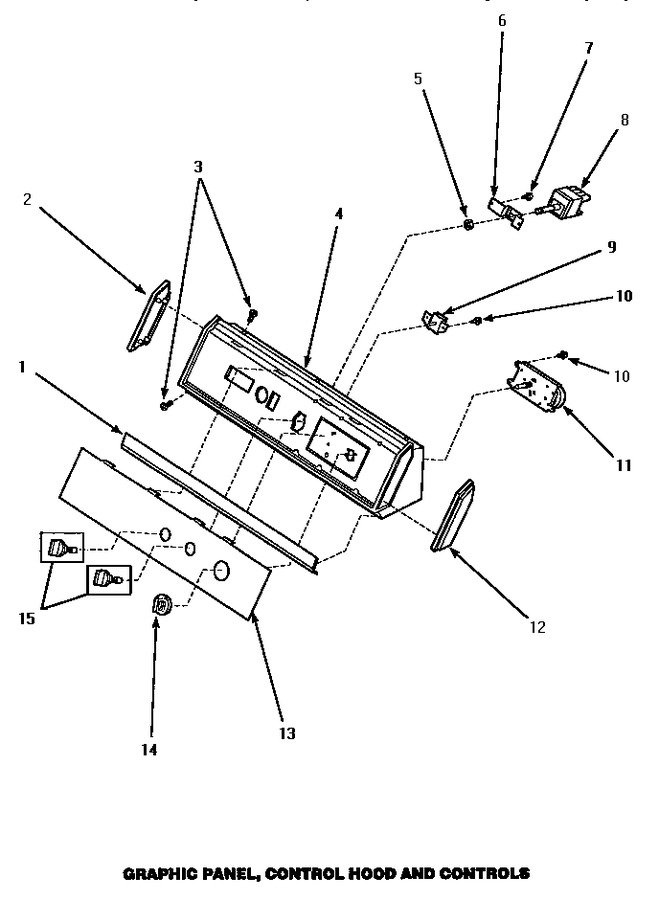

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61849R		Trim, Cont Pnl Top		Appelez-nous	-
2	31249		Cap,end-l.h.-chrome		Appelez-nous	-
3	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
4	59937		Assy, Hood Mtg		Appelez-nous	-
5	57584		Nut		Appelez-nous	-
6	59704		Bracket,switch Mount		Appelez-nous	-
7	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
8	Y61511		Switch,fabric Selector		Appelez-nous	-
9	500823		Signal,rotary				$ 52.99
10	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
11	59419		Timer		Appelez-nous	-
12	31248		Cap,end-r.h.-chrome		Appelez-nous	-
13	500660		Panel,graphic		Appelez-nous	-
14	DE81-05143A		Assy,timer Knob & Skir   (Replaces: 62176)				$ 142.77
15	33610		Assy,knob-rotary-black		Appelez-nous	-
	NOTE:		We Use Different Timer Vendors. Although The Timers Differ In Appearance, Theyare Completely Interchangeable When Identified By The Same Part Number.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
