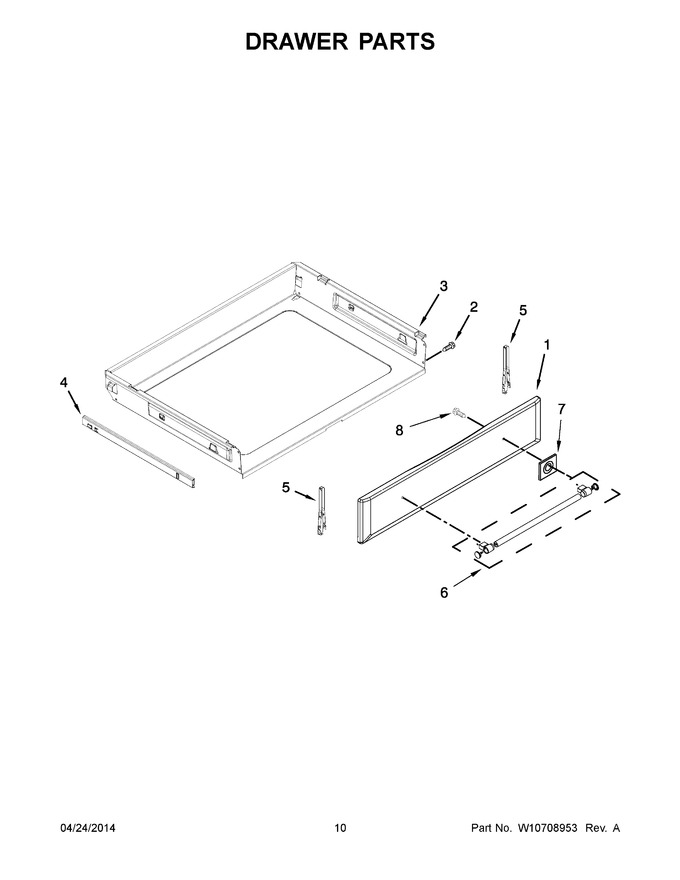

06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10655908 | Panel, Drawer (stainless) |
|
- | |||||
| 1 | W10667934 | Panel, Drawer (white) |
|
$ 139.43 | |||||
| 1 | W10667935 | Panel, Drawer (black) |
|
$ 140.13 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
$ 6.47 | |||||
| 3 | W10813962 | Drawer. Storage (Replaces: W10663433) |
|
Immediately | $ 124.34 | ||||
| 4 | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 92.68 | ||||
| 4 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 92.75 | ||||
| 5 | WPW10318027 | Bracket, Drawer (Replaces: W10318027) |
|
$ 103.00 | |||||
| 6 | WPW10665831 | Handle, Assembly (stainless) (Replaces: W10665831) |
|
$ 201.17 | |||||
| 7 | W11190816 | Spacer, Handle (Replaces: 3823F017-45) |
|
$ 14.94 | |||||
| 8 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.16 |
