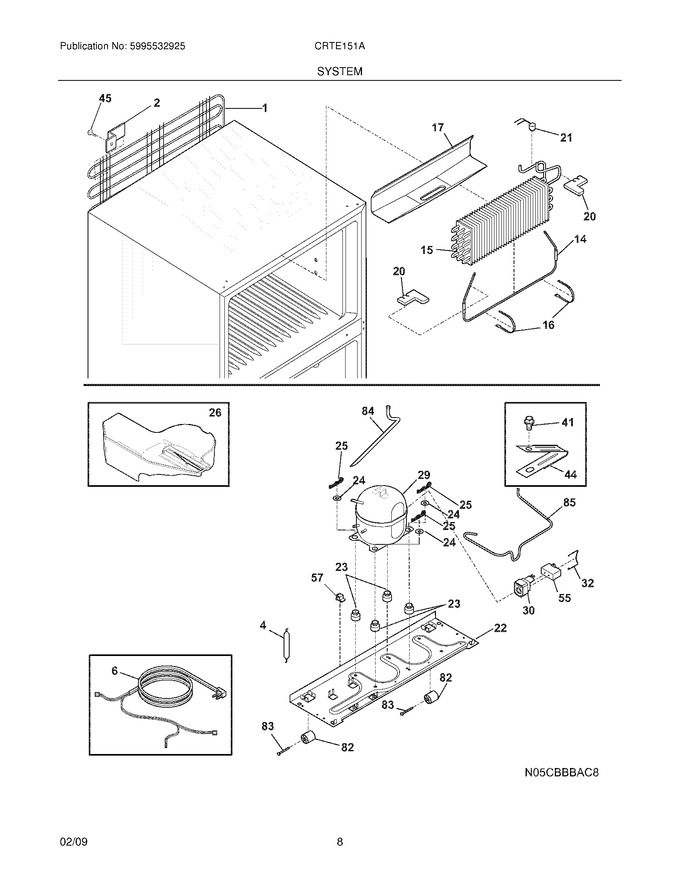

09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241927301 | Condenser,static |
|
$ 237.77 | |||||
| 2 | 5308000296 | Bracket,condenser Mtg ,(4) |
|
$ 30.20 | |||||
| 4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944002) |
|
Immediately | $ 31.67 | ||||
| 6 | 241678801 | Harness-wiring,machine Compt |
|
- | |||||
| 15 | 5303918275 | Evaporator Kit |
|
$ 343.46 | |||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 17 | 241801302 | Trough-drain |
|
$ 83.42 | |||||
| 20 | 241551902 | Insulation Block |
|
$ 11.34 | |||||
| 22 | 241665605 | Base-compressor |
|
$ 140.34 | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 42.53 | |||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 12.89 | |||||
| 25 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 26 | 240598501 | Pan-defrost Drain |
|
- | |||||
| 32 | 216649200 | Clip,controller |
|
$ 6.30 | |||||
| 41 | 241941202 | Screw,hex Washer Head ,8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| 44 | 5304456288 | Clamp-wiring Harness,strain Relief ,galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909913) |
|
Immediately | $ 35.38 | ||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin (Replaces: 5303316859) |
|
Immediately | $ 35.34 | ||||
| 84 | 241505701 | Tube-drain,lower |
|
$ 99.59 | |||||
| 85 | 241879801 | Tube-connector,suction |
|
- | |||||
| F14 | 242044007 | Heater-defrost (Replaces: 241940101) |
|
Immediately | $ 52.91 | ||||
| F21 | 5303918202 | Thermostat-defrost,kit |
|
Immediately | $ 20.21 | ||||
| F29 | 5304507765 | Compressor Kit (Replaces: 5303918427) |
|
Immediately | $ 677.23 | ||||
| F30 | 241707721 | Starter-ptc |
|
$ 85.05 | |||||
| FNI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 | ||||
| NI | 5303208866 | Spacer,condenser Tube ,black |
|
$ 1.94 | |||||
| NI | 5304406721 | Spacer-cond Tube,round ,5/8 Od X .81``lg |
|
- | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| NI | 240396801 | Clamp,tube/wiring ,nylon ,black/natural |
|
$ 19.13 | |||||
| NI | 5303918263 | Heat Exchanger Kit,suction Line |
|
$ 461.16 | |||||
| NI | 5303918234 | Hot Tube Repair Kit,service |
|
$ 585.53 | |||||
| NI | 5303307896 | Thermal Mastic |
|
$ 53.87 | |||||
| NI | 241500305 | Screw,hex Washer Head ,8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.03 | |||||
| NI | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 |
