SELECT A DIAGRAM

01 - Cover Sheet


02 - Upper Oven Parts


03 - Lower Oven Parts


04 - Control Panel Parts

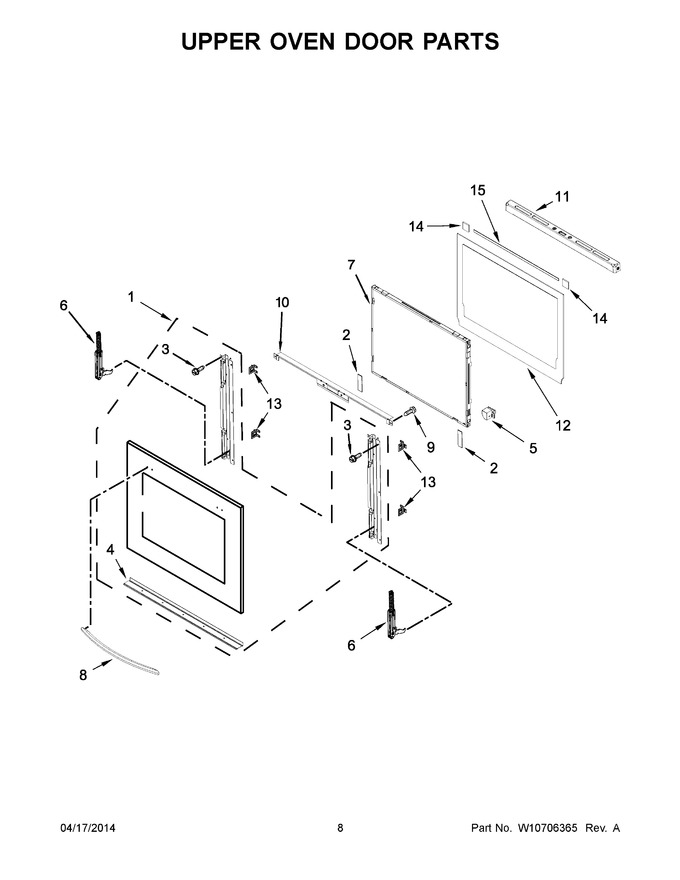

05 - Upper Oven Door Parts


06 - Lower Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10587566		Assembly, Door Glass (stainless)		Appelez-nous	-
1	W10587567		Assembly, Door Glass (black)		Appelez-nous	-
2	W10840861		Spacer   (Replaces: W10517440)				$ 8.89
3	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 6.47
4	W10479069		Bracket, Lower Door		Appelez-nous	-
5	WPW10581826		Bracket, Door (right)   (Replaces: W10581826)				$ 57.11
5	WPW10581831		Bracket, Door (left)   (Replaces: W10581831)				$ 31.89
6	W11642291		Hinge, Door   (Replaces: W10419878)				$ 71.35
7	W10347599		Assembly, Window Pack				$ 212.42
8	W10284919		Handle, Door (black)		Appelez-nous	-
8	WPW10437675		Handle, Door (stainless)   (Replaces: W10437675)				$ 173.66
9	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 15.94
10	W10459352		Bracket, Upper Glass				$ 145.30
11	W10416258		Vent, Door Top		Appelez-nous	-
12	WPW10335921		Liner, Door   (Replaces: W10335921)				$ 354.53
13	WPW10549747		Clip, Spring   (Replaces: W10549747)				$ 17.92
14	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 10.67
15	W10489274		Pad, Vent				$ 7.58

    View Diagram in Separate Window       Print Part List
