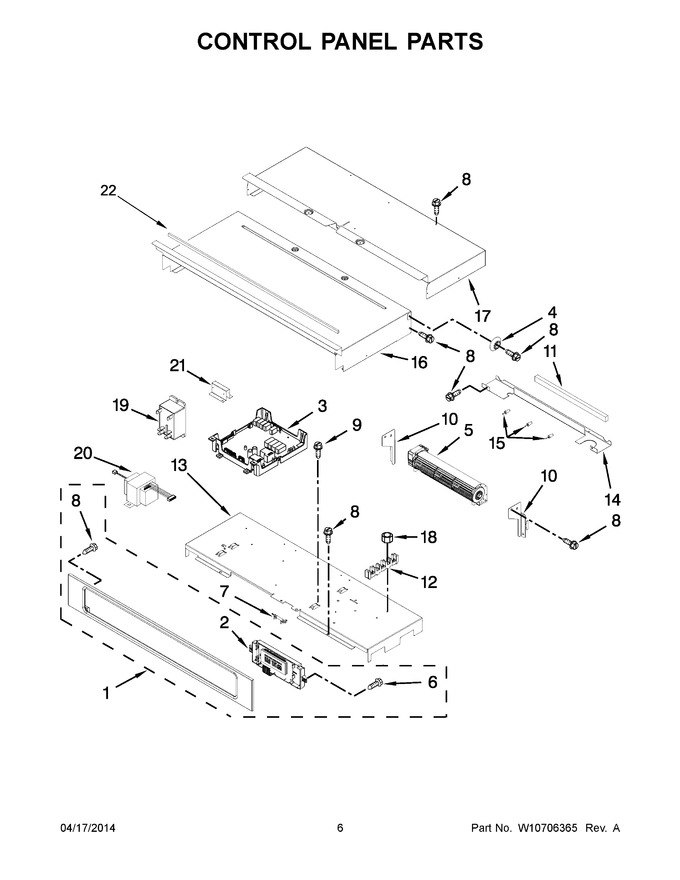

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10365993		Assembly, Control Panel (includes Overlay) (stainless)		Appelez-nous	-
1	W10365994		Assembly, Control Panel (includes Overlay) (black)		Appelez-nous	-
2	W10590500		Board, Display		Appelez-nous	-
3	W10317345		Board, Goc				$ 372.16
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10641253		Blower				$ 127.63
6	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 15.94
7	WPW10545291		Fuse, Thermal   (Replaces: W10545291)			Immediately	$ 31.95
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
10	W10283078		Bracket, Blower (right)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 31.65
13	W10283005		Tray, Electronic		Appelez-nous	-
14	W10509164		Chassis, Divider Back		Appelez-nous	-
15	W10351295		Bumper				$ 18.96
16	W10318193		Chassis, Cover Top Front 27``				$ 116.64
17	W10318195		Chassis, Cover Top Back 27``				$ 95.18
18	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.47
19	WP9752759		Relay   (Replaces: 9752759)			Immediately	$ 172.43
20	W10354052		Transformer, Control				$ 122.98
21	W10347585		Bracket, Relay				$ 14.27
22	WPW10657548		Gasket, Rubber   (Replaces: W10657548)				$ 76.85
