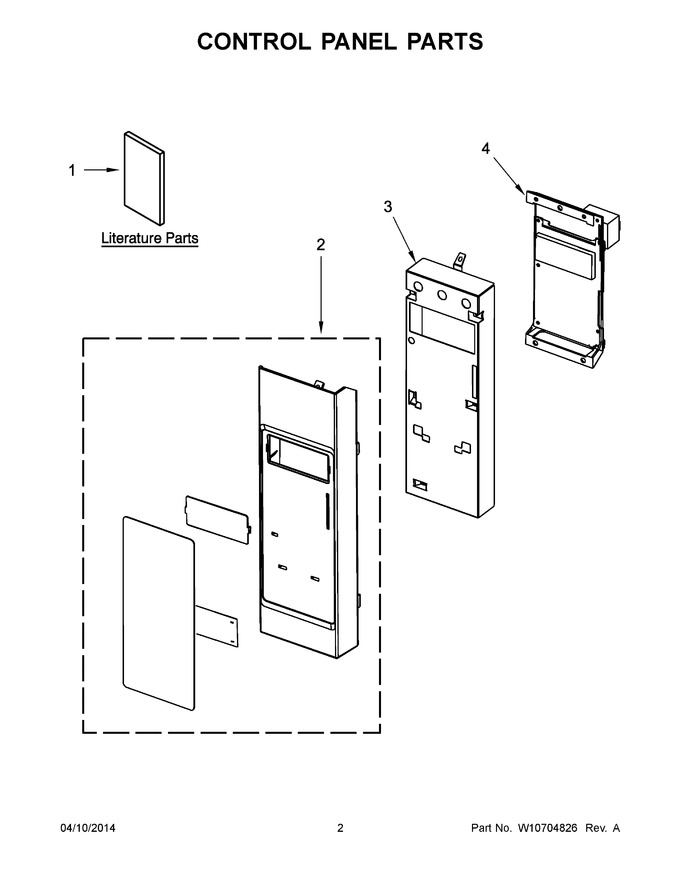

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10249655 | Use And Care Guide |
|
- | |||||
| 1 | W10247296 | Installation Instructions |
|
- | |||||
| 1 | W10512462 | Quick Reference Guide |
|
- | |||||
| 1 | W10608085 | Tech Sheet |
|
- | |||||
| 2 | W10519734 | Control Panel Assembly (includes Lens And Membrane Switch) (white) |
|
- | |||||
| 2 | W10519733 | Control Panel Assembly (includes Lens And Membrane Switch) (black) |
|
- | |||||
| 2 | W10512495 | Control Panel Assembly (includes Lens And Membrane Switch) (stainless) |
|
- | |||||
| 3 | W10245199 | Bracket, Control |
|
$ 60.00 | |||||
| 4 | W10569243 | Microcomputer |
|
- |
