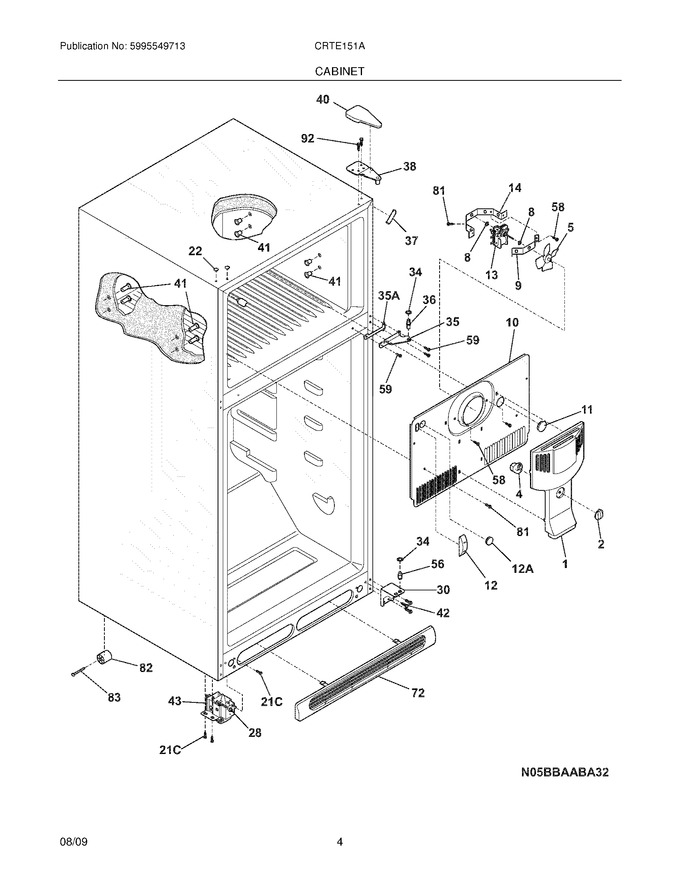

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241652301 | Cover-fan |
|
$ 112.48 | |||||
| 2 | 240367001 | Knob-damper Control |
|
Immediately | $ 57.64 | ||||
| 4 | 241523701 | Damper-fan Cover |
|
$ 19.16 | |||||
| 8 | 240438003 | Bushing-motor Mtg,(2) (Replaces: 242014101) |
|
$ 17.44 | |||||
| 9 | 5303292396 | Bracket-motor Mtg,front |
|
$ 72.30 | |||||
| 10 | 241652215 | Cover-evap Coil |
|
$ 76.76 | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 12 | 242193602 | Plug-ice Maker Harness,rectangular (Replaces: 241557601) |
|
$ 14.41 | |||||
| 14 | 240438003 | Bracket-motor Mtg,rear (Replaces: 5303292397) |
|
$ 17.44 | |||||
| 22 | 215774901 | Plug-button,bisque ,upr Hinge Holes (Replaces: 215774919) |
|
Immediately | $ 18.20 | ||||
| 28 | 5304499445 | Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special (Replaces: 241708801) |
|
Immediately | $ 31.33 | ||||
| 30 | 240357106 | Bracket-lower Hinge |
|
$ 44.78 | |||||
| 34 | 240311303 | Washer,hinge ,nylon ,(2) |
|
Immediately | $ 10.62 | ||||
| 35 | 240357006 | Bracket-ctr Hinge |
|
$ 46.67 | |||||
| 36 | 240516402 | Pin-center Hinge |
|
- | |||||
| 37 | 241611304 | Trim-cabinet Corner,bisque ,(2) |
|
- | |||||
| 38 | 240356902 | Bracket,upper Hinge |
|
- | |||||
| 40 | 240354403 | Cover-upper Hinge,bisque |
|
$ 40.95 | |||||
| 41 | 5304500407 | Grommet,shelf Mtg ,1.25`` ,lh ,(4) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 42 | 240578902 | Screw,hex Head ,1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| 43 | 5304499445 | Roller Assy,adjustable ,front ,(2) (Replaces: 241882901) |
|
Immediately | $ 31.33 | ||||
| 56 | 240516502 | Pin-lower Hinge |
|
$ 72.80 | |||||
| 58 | 5304456287 | Screw,hex Washer Head ,8-15a X 0.500 |
|
$ 0.76 | |||||
| 59 | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 72 | 240368302 | Grille/kickplate,bisque ,lower Front |
|
$ 90.30 | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin |
|
Immediately | $ 35.34 | ||||
| 92 | 241710601 | Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg |
|
$ 13.46 | |||||
| 12A | 240374401 | Plug-wtr Inlet Tube,round ,1`` |
|
$ 12.15 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 35A | 240336802 | Spacer-hinge,center |
|
Immediately | $ 18.43 | ||||
| F12A | 241586701 | Plug-foam-wtr-inlet,round |
|
$ 17.72 | |||||
| F13 | 241854301 | Motor-fan |
|
Immediately | $ 190.51 | ||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| NI | 5304434189 | Seal-coil Cover (Replaces: 240568601) |
|
$ 66.63 | |||||
| NI | 218515401 | Clip |
|
$ 17.72 | |||||
| NI | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| NI | 240494001 | Plug,button ,cab Liner Holes (Replaces: 240479601) |
|
Immediately | $ 18.20 | ||||
| NI | 5304414035 | Paint,touch-up ,bisque |
|
$ 13.46 | |||||
| NI | 241941202 | Screw,hex Washer Head ,8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 |
