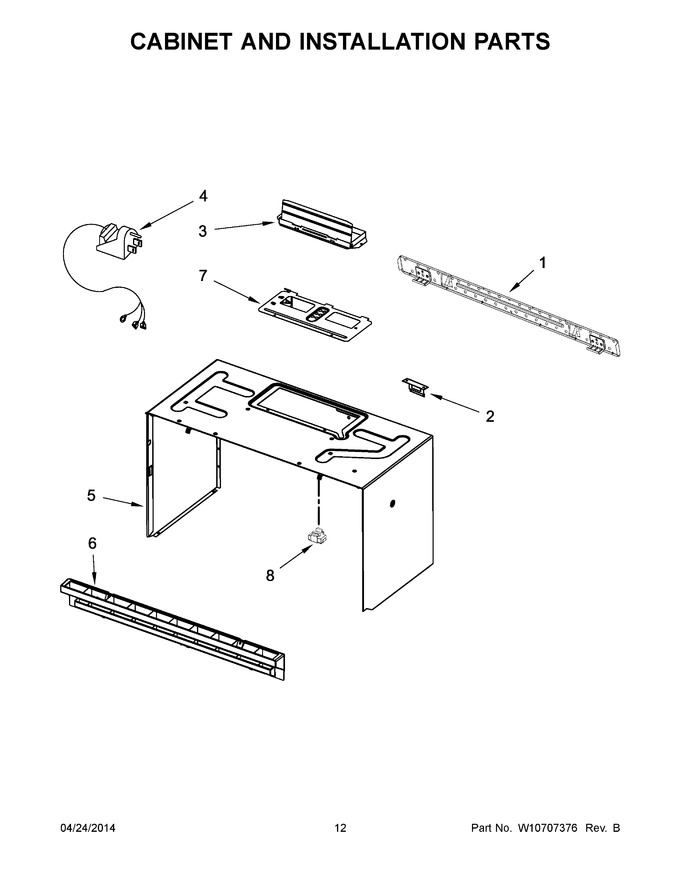

01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 21.16 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | W10708076 | Cord, Power |
|
$ 18.48 | |||||
| 5 | WPW10462001 | Case, Outer (black) (Replaces: W10462001) |
|
$ 255.01 | |||||
| 6 | W10313273 | Grille, Vent (stainless) |
|
$ 66.33 | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W10596040 | Assembly, Mounting Nut |
|
Immediately | $ 8.30 | ||||
| NI | 8205948 | Miscellaneous, Installation, Hardware |
|
$ 23.06 | |||||
| NI | WP8169704 | Miscellaneous, 1/4-20x3`` Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| NI | W10540463 | Miscellaneous, Harness, Main |
|
- | |||||
| NI | W10539841 | Miscellaneous, Harness, Hood Lamp And Turntable Motor |
|
$ 17.98 | |||||
| NI | W10539842 | Miscellaneous, Harness, Magnetron To High Voltage Transformer |
|
$ 14.31 | |||||
| NI | W10539840 | Miscellaneous, Harness, Pcba Ground Wire |
|
$ 21.50 | |||||
| NI | W10190020 | Miscellaneous, Template, Upper |
|
$ 56.21 |
