SELECT A DIAGRAM

01 - Cover Sheet

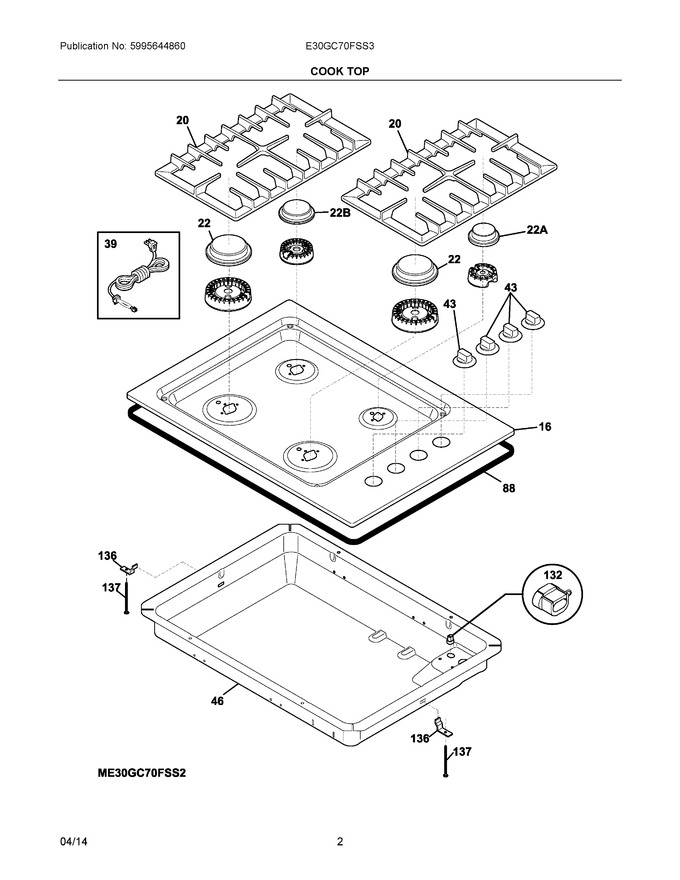

02 - Cooktop


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318560606		Maintop, Assembly, Stainless		Appelez-nous	-
20	318221695		Grate, Burner, Matte, Black, Double, 2 Pack		Appelez-nous	-
22	316548900		Cap, 17k Burner, Matte, Black				$ 73.29
39	318144006		Cord, Service		Appelez-nous	-
43	318242270		Knob, Control, (4)				$ 271.06
46	318278907		Box, Burner		Appelez-nous	-
88	318280120		Gasket, Cooktop, 93				$ 138.29
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	5304441734		Screw, 10-24 X 2, (2)				$ 10.87
22A	316548600		Cap, Burner, 5k, Black				$ 87.70
22B	316548700		Cap, Burner, 9.5k, Black, (2)				$ 134.23
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-
NI	5303323171		Tape, Aluminum, 2		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	5303307980		Screw, 8-32 X 0.437, (4)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
