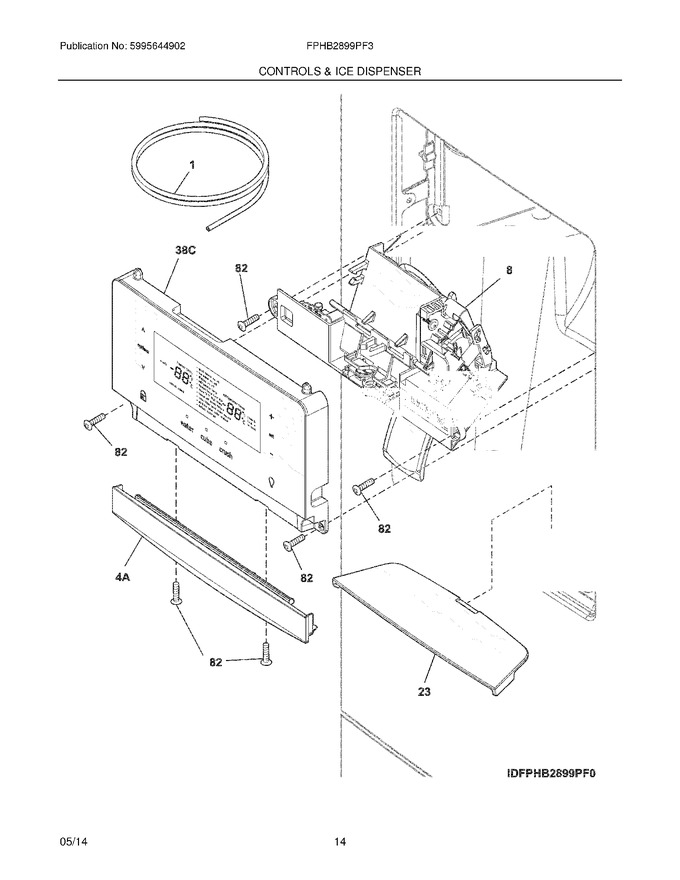

13 - Controls & Ice Dispenser


15 - Ice Container


17 - Fresh Food Ice Maker


19 - Freezer Ice Maker


20 - Wiring Diagram


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976436		Tube-water,5/16 - 42`` ,yellow ,sd   (Replaces: 218976434)			Immediately	$ 8.51
8	242270106		Module,dispenser ,clear ,w/paddle   (Replaces: 242270102)			Immediately	$ 214.62
23	242176503		Sump,dispenser ,grey				$ 114.11
82	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
4A	242194301		Trim,facade ,stainless				$ 103.29
F38C	242058231		User Interface,assembly ,complete ,w/gasket				$ 401.18
F38C	241953902		Screw,no.8-18   (Replaces: 241953907)			Immediately	$ 17.11
NI	241920106		Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension   (Replaces: 241920104)			Immediately	$ 60.67
NI	241965906		Tube-water,5/16 - 67`` ,natural			Immediately	$ 24.10
NI	242169404		Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension		Appelez-nous	-
NI	241964707		Tube-water,1/4 - 36`` ,green			Immediately	$ 18.43
