New Model Search:

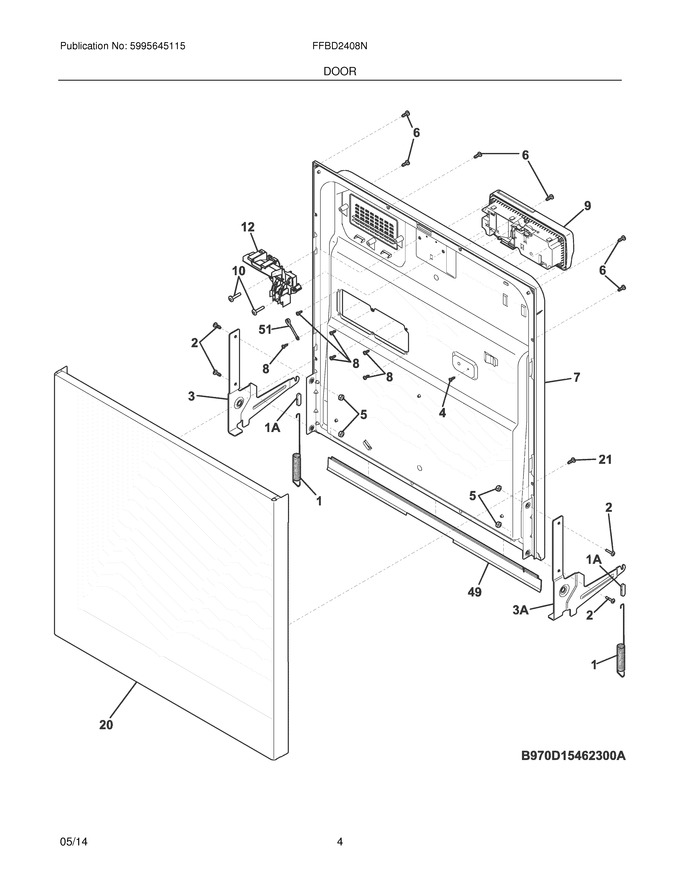

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430501 | Spring,door ,(2) |
|
Immediately | $ 36.31 | ||||
| 2 | 154093301 | Screw,arm Assy ,(4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304513274 | Arm Assy,lh (Replaces: 154691201) |
|
Immediately | $ 66.56 | ||||
| 4 | 808326801 | Screw,hex Hd ,8-18 X .4 ,w/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| 5 | 154079601 | Nut,arm Assy ,and Handle Mtg. |
|
$ 0.41 | |||||
| 6 | 154783101 | Screw,plt ,8-10 |
|
Immediately | $ 7.09 | ||||
| 7 | 154494601 | Liner,door Assy. |
|
$ 239.60 | |||||
| 8 | 154294701 | Screw,no.7 Plas .375 ,(6) ,disp. Assy. |
|
$ 9.22 | |||||
| 10 | 154103702 | Screw,latch Mtg ,(2) |
|
$ 13.46 | |||||
| 20 | 154829003 | Door,outer ,black ,w/barrier |
|
$ 148.84 | |||||
| 21 | 154754701 | Screw,truss Hd ,8-18 Type Ab |
|
$ 3.55 | |||||
| 49 | 809006501 | Gasket,door ,bottom (Replaces: 154576501) |
|
Immediately | $ 36.22 | ||||
| 51 | 154320301 | Clamp,drip Loop ,wire |
|
$ 62.69 | |||||
| 1A | 154325201 | Linkage,door Spring ,(2) |
|
Immediately | $ 27.27 | ||||
| 3A | 5304513274 | Arm Assy,rh (Replaces: 154691101) |
|
Immediately | $ 66.56 | ||||
| F12 | A00099902 | Latch Assy,black (Replaces: 5304490366) |
|
Immediately | $ 93.26 | ||||
| F9 | 5304506521 | Dispenser,det/rinse Aid ,w/level Ind. (Replaces: 154860101) |
|
Immediately | $ 99.05 | ||||
| NI | 5304525214 | Shield,dispenser (Replaces: 154798401) |
|
Immediately | $ 10.13 | ||||
| NI | 154686401 | Bearing,hinge Pin |
|
$ 10.63 | |||||
| NI | 154647101 | Hinge Pin,arm Assy |
|
$ 14.18 |
