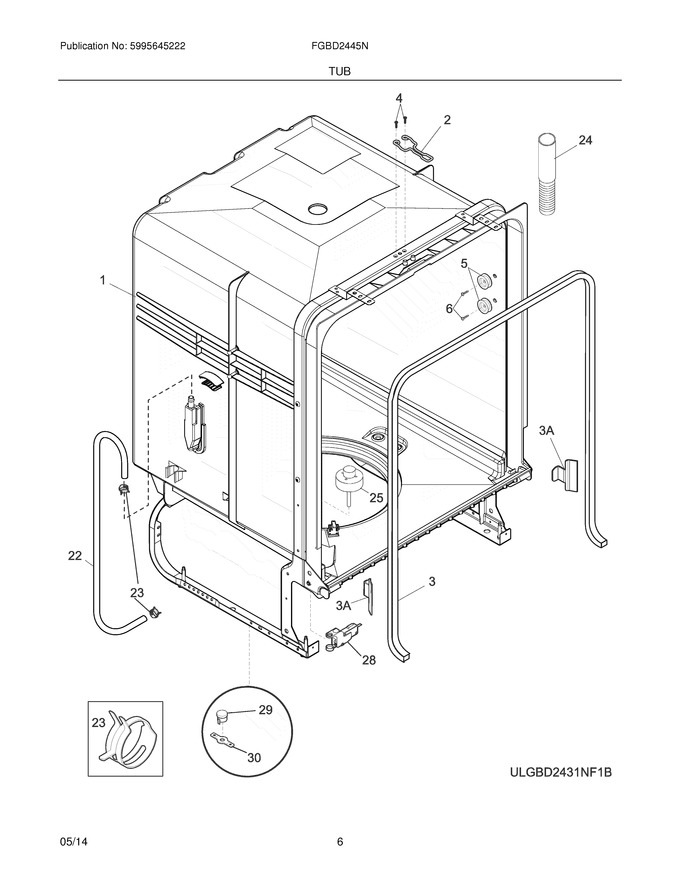

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154729402		Tub Assy,w/frame Parts ,grey ,df				$ 287.33
2	5304532796		Strike,door   (Replaces: 154544601)				$ 11.57
4	808326801		Screw,hex Hd ,8-18 X .4 ,w/washer   (Replaces: 154825401)				$ 2.84
5	5304506916		Roller Assembly,tub ,(8) ,w/screw-washer   (Replaces: 154767502)			Immediately	$ 33.00
6	5303943103		Screw,w/washer ,(8)			Immediately	$ 17.72
22	5304523457		Tubing,water Inlet   (Replaces: 154446002)			Immediately	$ 14.03
23	5304538466		Clamp,tubing ,(2)   (Replaces: 5303318539)				$ 2.31
24	807117001		Hose,drain			Immediately	$ 36.14
30	154241101		Retainer,thermostat				$ 3.62
3A	154701001		Shield,tub Splash ,corner ,(2)   (Replaces: 154685101)			Immediately	$ 17.00
F25	5304532207		Float,grey   (Replaces: 154767802)			Immediately	$ 6.89
F28	154773201		Switch Assy,float			Immediately	$ 55.29
F29	5304525221		Thermostat,hi Limit   (Replaces: 154642901)			Immediately	$ 31.17
F3	8581548276014		Gasket,tub   (Replaces: 154827601)			Immediately	$ 26.30
NI	5300807270		Screw,(2) ,countertop Mtg.				$ 6.72
NI	154380601		Clamp,hose ,1.5`` Open ,worm Gear ,(5)				$ 73.71
NI	154297701		Screw,retainer-thermo				$ 13.46
NI	5304525043		Insulation,blanket   (Replaces: 154858701)			Immediately	$ 45.55
NI	154406801		Bracket Kit,countertop Mtg ,w/scrws & Instr				$ 105.61
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
