01 - Cover

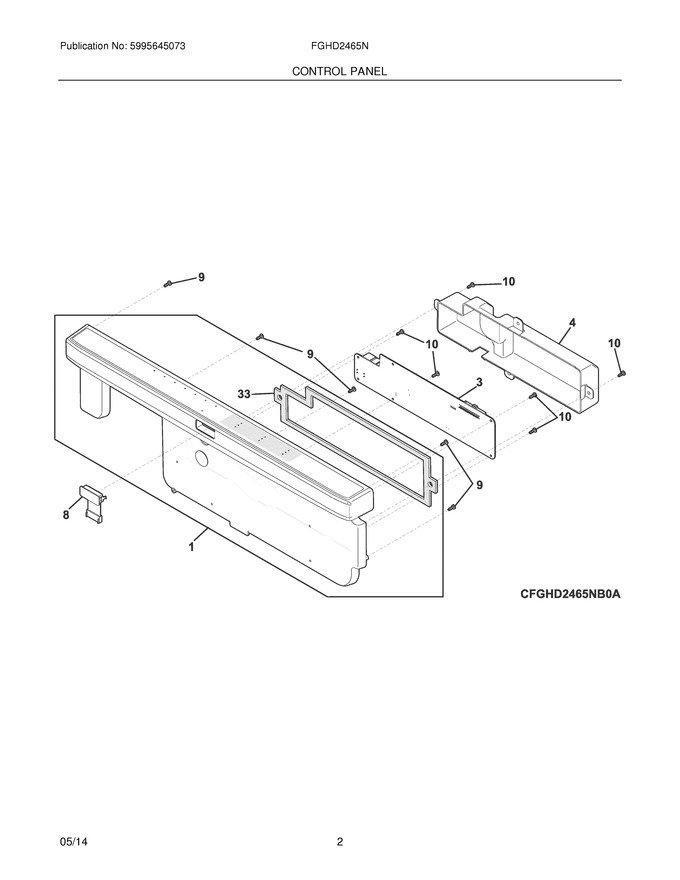

03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
14 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 154718801 | Cover,control |
|
$ 35.44 | |||||
| 9 | 154783101 | Screw,plt ,8-10 |
|
Immediately | $ 7.09 | ||||
| 10 | 154294701 | Screw,no.7 Plas .375 ,(6) ,disp. Assy. |
|
$ 9.22 | |||||
| 33 | 154478901 | Gasket,cover |
|
$ 61.66 | |||||
| F1 | 807545703 | Console Assembly,w/overlay ,black ,& Cover Gasket |
|
$ 435.87 | |||||
| F3 | 5304514670 | Board,control (Replaces: 154886103) |
|
Immediately | $ 184.15 | ||||
| F8 | 154734601 | Display Assembly |
|
$ 78.17 | |||||
| FNI | 154870101 | Harness,wiring ,main |
|
Immediately | $ 138.20 | ||||
| NI | 808612201 | Energy Guide |
|
- |
