SELECT A DIAGRAM

01 - Cover

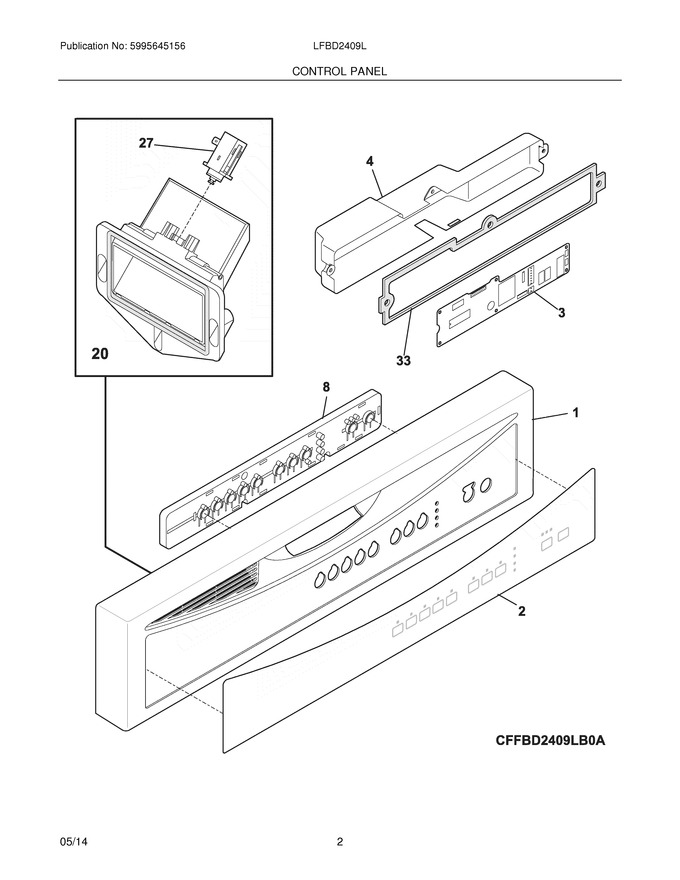

03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


14 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154788801		Panel,console ,white ,10 Button				$ 54.92
2	154804201		Overlay,console Panel ,white				$ 82.53
4	154552101		Cover,control				$ 57.17
20	154423601		Vent Assy,active Dry ,w/actuator				$ 198.55
27	154433501		Actuator,active Dry Vent		Appelez-nous	-
33	154553501		Gasket,cover				$ 42.34
F3	5304512731		Board,control   (Replaces: 807024701)			Immediately	$ 138.42
F8	154852501		Switch Assembly,tactile				$ 145.30
FNI	154851601		Harness,wiring ,main				$ 110.78
NI	154793401		Screw,dry Duct ,(3)				$ 7.09
NI	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
NI	808612210		Energy Guide		Appelez-nous	-
NI	808326801		Screw,ground ,no.8-18 X .375   (Replaces: 154409401)				$ 2.84

    View Diagram in Separate Window       Print Part List
