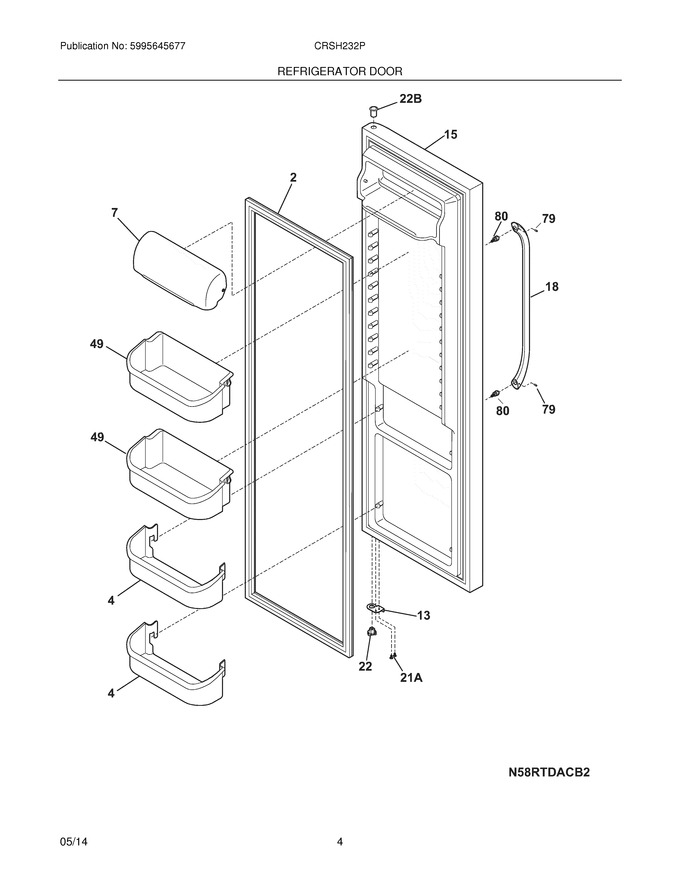

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240363701		Bin-door,2-liter			Immediately	$ 59.42
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
11	807460103		Refrigerator Door,complete ,black		Appelez-nous	-
13	240581905		Door Stop,black ,ref				$ 60.25
18	242152703		Handle-door,black ,refr/frz ,w/set Screw		Appelez-nous	-
22	242015302		Bearing-hinge(ref),black ,closer				$ 10.62
49	240324501		Bin-door,gallon			Immediately	$ 69.06
79	218755402		Screw-set,10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
F2	241786015		Gasket-refr Door,black ,magnetic   (Replaces: 241786007)			Immediately	$ 94.66
