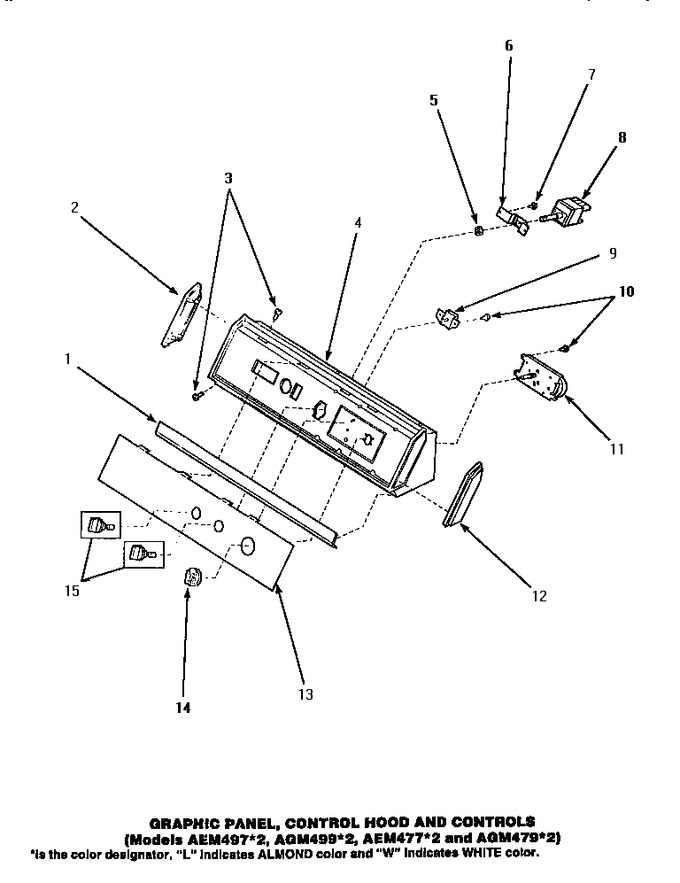

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
61849R |
|
Trim, Cont Pnl Top |
|
Appelez-nous
|
- |
|
|
|
| 2 |
31249 |
|
Cap,end-l.h.-chrome |
|
Appelez-nous
|
- |
|
|
|
| 3 |
31752 |
|
Screw,no.8abx3/4 Pozidri |
|
Appelez-nous
|
- |
|
|
|
| 3 |
32993 |
|
Screw,no.8abx3/4 Pozidri |
|
Appelez-nous
|
- |
|
|
|
| 4 |
62745 |
|
Assy,hood & Mtg Plate |
|
Appelez-nous
|
- |
|
|
|
| 4 |
59937 |
|
Assy, Hood Mtg |
|
Appelez-nous
|
- |
|
|
|
| 5 |
57584 |
|
Nut |
|
Appelez-nous
|
- |
|
|
|
| 6 |
59704 |
|
Bracket,switch Mount |
|
Appelez-nous
|
- |
|
|
|
| 7 |
31260 |
|
Screw, No.8 X 3/8 Ind H |
|
|
|
$ 2.68 |
|
|
| 8 |
Y61511 |
|
Switch,fabric Selector |
|
Appelez-nous
|
- |
|
|
|
| 9 |
500823 |
|
Signal,rotary |
|
|
|
$ 52.99 |
|
|
| 10 |
WP90767 |
 |
Screw, 8b-18x3/8 Slt (Replaces: 501086) |
|
|
Immediately |
$ 7.04 |
|
|
| 11 |
502963 |
|
Timer, 3 Cycle |
|
|
|
$ 160.26 |
|
|
| 12 |
31248 |
|
Cap,end-r.h.-chrome |
|
Appelez-nous
|
- |
|
|
|
| 13 |
502203 |
|
Panel, Graphics Gray |
|
Appelez-nous
|
- |
|
|
|
| 13 |
502201 |
|
Graphic Panel Models |
|
Appelez-nous
|
- |
|
|
|
| 14 |
DE81-07748A |
|
Assy,timer Knob & Skirt White (Replaces: 62234) |
|
|
|
$ 133.40 |
|
|
| 14 |
DE81-05143A |
|
Assy,timer Knob & Skir (Replaces: 62176) |
|
|
|
$ 142.77 |
|
|
| 15 |
WP36701W |
 |
Assy,knob-rotary-white (Replaces: 33688) |
|
|
Immediately |
$ 44.31 |
|
|
| 15 |
33610 |
|
Assy,knob-rotary-black |
|
Appelez-nous
|
- |
|
|
|
|
NOTE: |
|
Note: (timers Used Are From Different Vendors. Although They Differ In Appearance, They Are Completely Interchangeable When Identified By The Same Part Number |
|
Appelez-nous
|
- |
|
|
|
