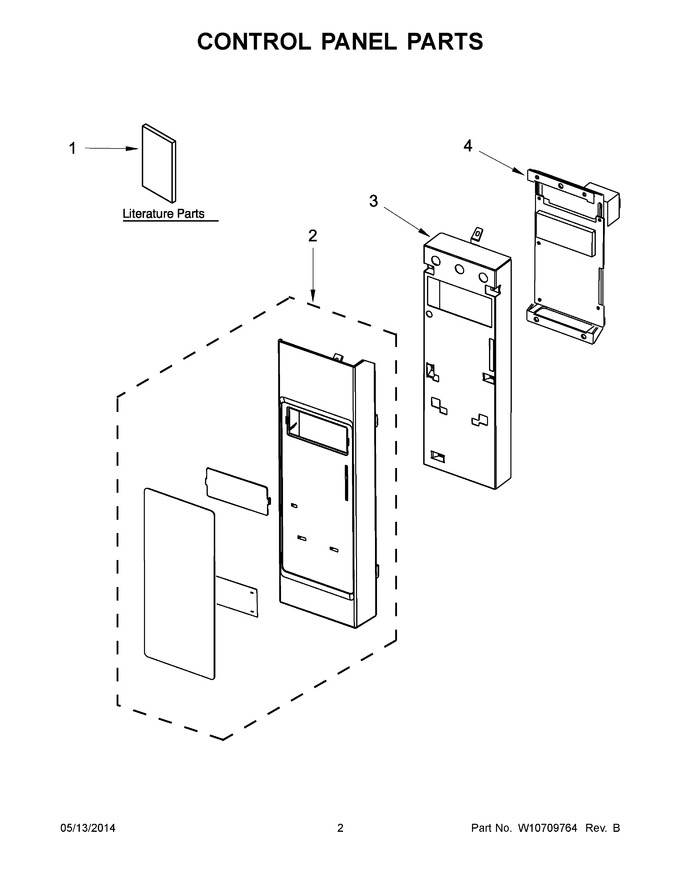

02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10507296		Installation Instructions		Appelez-nous	-
1	W10464602		Use And Care Guide		Appelez-nous	-
1	W10292071		Cook Guide Label (english)		Appelez-nous	-
1	W10270335		Quick Reference Guide		Appelez-nous	-
1	W10498620		Tech Sheet		Appelez-nous	-
2	W10484952		Control Panel Assembly (includes Lens And Membrane Switch) (white)				$ 245.43
2	W10466005		Control Panel Assembly (includes Lens And Membrane Switch) (stainless)				$ 145.98
3	W10247749		Bracket, Control				$ 145.56
4	WPW10605938		Microcomputer   (Replaces: W10605938)				$ 218.35
