01 - Cover Sheet

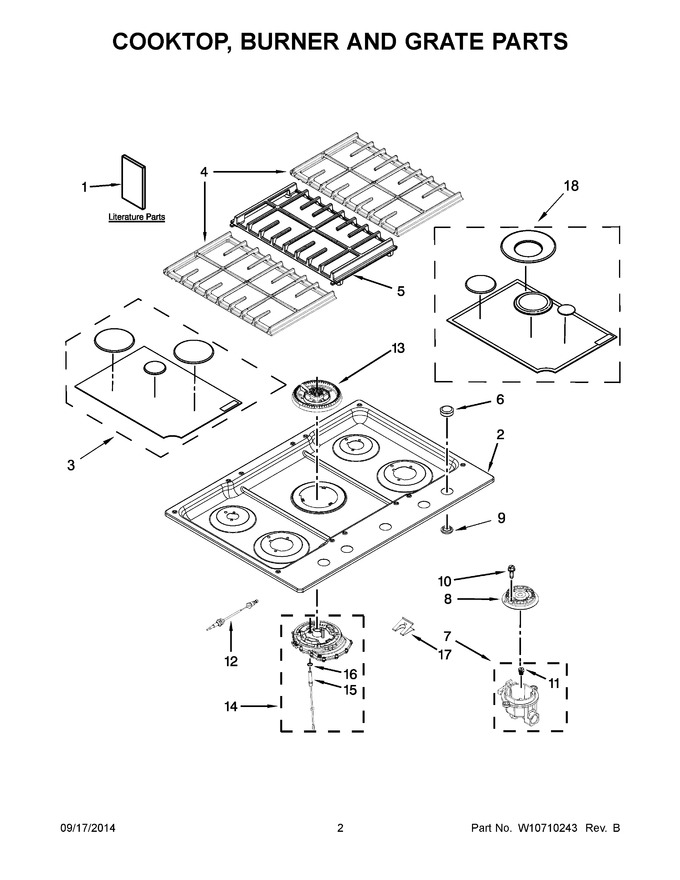

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10597144 | Installation Instructions |
|
- | |||||
| 2 | W10722084 | Cooktop (stainless) |
|
Immediately | $ 422.26 | ||||
| 3 | W10814915 | Kit, Burner Cap (black) (Replaces: W10617345) |
|
$ 93.44 | |||||
| 4 | W10583860 | Assembly, Side Grate |
|
$ 282.73 | |||||
| 5 | W10583862 | Grate, Center |
|
$ 269.88 | |||||
| 6 | WPW10545849 | Knobs, Cooktop (stainless) (Replaces: W10545849) |
|
Immediately | $ 79.76 | ||||
| 7 | W10674920 | Holder, Orifice (10k) (left Front & Right Front) |
|
$ 34.67 | |||||
| 8 | WP8286815 | Head, Burner (left Front & Right Front) (Replaces: 8286815) |
|
Immediately | $ 66.94 | ||||
| 9 | W10853046 | Bezel, Knob (Replaces: W10593536) |
|
Immediately | $ 63.88 | ||||
| 10 | WP8287059 | Screw (Replaces: 8287059) |
|
Immediately | $ 7.02 | ||||
| 11 | W10674732 | Orifice (10k) (left Front & Right Front) |
|
$ 17.69 | |||||
| 12 | W11507531 | Wiring, Electrode (left Front & Right Front) (Replaces: W10541842) |
|
$ 52.13 | |||||
| 13 | W10836409 | Spreader, Burner (Replaces: W10730779) |
|
Immediately | $ 115.45 | ||||
| 14 | W10625853 | Assembly, Burner Base (17k) |
|
$ 240.13 | |||||
| 15 | W11610134 | Electrode, Burner (Replaces: W10657994) |
|
Immediately | $ 26.78 | ||||
| 16 | W10416057 | O-ring |
|
$ 66.97 | |||||
| 17 | 8286863 | Spring, Electrode |
|
$ 65.93 | |||||
| 18 | W10811958 | Kit, Burner Cap (black) (includes Melt Cap) (Replaces: W10635600) |
|
Immediately | $ 144.06 | ||||
| 11A | W10151353 | Orifice (6k) (left Rear) |
|
- | |||||
| 11B | W11727825 | Orifice (7k) (right Rear) (Replaces: W10674728) |
|
$ 28.48 | |||||
| 12A | W11507532 | Wiring, Electrode (left Rear & Right Rear) (Replaces: W10541843) |
|
Immediately | $ 52.19 | ||||
| 1A | W10672375 | Undercounter Install Instructions |
|
- | |||||
| 1B | W10597142 | Use & Care Guide |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 7A | W10674918 | Holder, Orifice (6k) (left Rear) |
|
Immediately | $ 28.02 | ||||
| 7B | W10674919 | Holder, Orifice (7k) (right Rear) |
|
$ 30.08 | |||||
| 8A | WP8286813 | Head, Burner (left Rear) (Replaces: 8286813) |
|
$ 85.50 | |||||
| 8B | WP8286814 | Head, Burner (right Rear) (Replaces: 8286814) |
|
$ 106.79 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10617403 | Insulation, Cooktop |
|
$ 181.89 |
