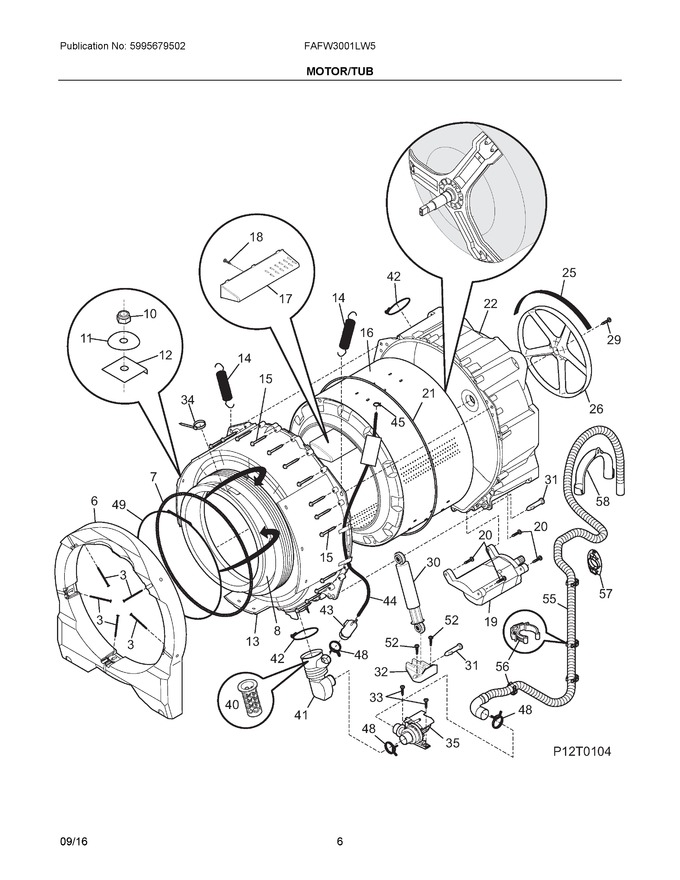

04 - Motor/tub


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131793303		Bolt, Carriage, 1/4-20 X 2.60				$ 13.74
6	134362200		Counterweight, Front, One Piece				$ 195.83
7	134365300		Spring, Bellows Clamp, Retainer				$ 61.66
8	137566000		Bellows Kit, Boot, W/light Hole   (Replaces: 137045600)				$ 232.88
10	137086500		Nut, Hex, 1/4-20 Unc-2b				$ 18.11
11	131276900		Washer, Bellville, Spring Steel				$ 21.69
12	134430600		Plate, Counterweight				$ 10.40
13	134362000		Shell, Tub, Front				$ 417.85
14	137099300		Spring Assy, Suspension				$ 172.46
15	131303900		Screw, Hex Washer Head, 1/4-10a X 2.165				$ 15.60
16	134960600		Drum Assy, Spin Basket				$ 433.53
17	134952702		Vane				$ 42.53
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 26.58
19	137587700		Motor, Cim				$ 403.48
20	131303500		Screw, 12-14ab X 1.50, Motor Mtg.				$ 12.05
21	5304520351		O-ring, Tub   (Replaces: 134361900)				$ 98.32
22	134507120		Shell, Outer Tub, Rear, With Bearing   (Replaces: 134507170)				$ 566.20
25	134051003		Belt, Drive, 6-rib				$ 52.61
26	137317100		Pulley, Drum Drive, Rear, Large				$ 60.74
29	134408400		Screw, 10.9 Class, M10 X 25 Mm				$ 17.72
30	137320300		Shock Absorber, Assembly				$ 66.82
31	131268300		Pin, Shock Mtg.			Immediately	$ 12.76
32	134363200		Bracket, Shock Mtg.				$ 19.13
33	134160900		Screw, Washer Hd, 10-16ab X 0.75				$ 12.05
34	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 10.63
35	137221600		Pump, Drain   (Replaces: 137108100)			Immediately	$ 189.21
40	137518800		Filter, Pump, 36				$ 9.19
41	134455900		Hose, Coin Trap, Tub-to-pump			Immediately	$ 70.85
42	134737300		Clamp, Hose				$ 20.13
43	137089000		Chamber, Air   (Replaces: 134369000)				$ 129.00
44	137089000		Pressure Hose, Assembly   (Replaces: 137088900)				$ 129.00
45	137087500		Clamp, Hose				$ 10.13
48	5304536802		Clamp, Hose, Wire   (Replaces: 131306234)			Immediately	$ 4.01
49	134527100		Clamp, Bellows, Spring Held			Immediately	$ 44.55
52	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
55	137385700		Hose, Drain, One Piece				$ 153.09
56	134781400		Fastener, Hose Clip				$ 13.49
57	134641100		Bracket, Drain Hose Mtg, Rear				$ 19.85
