View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Interior Parts
04 - Control Panel Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

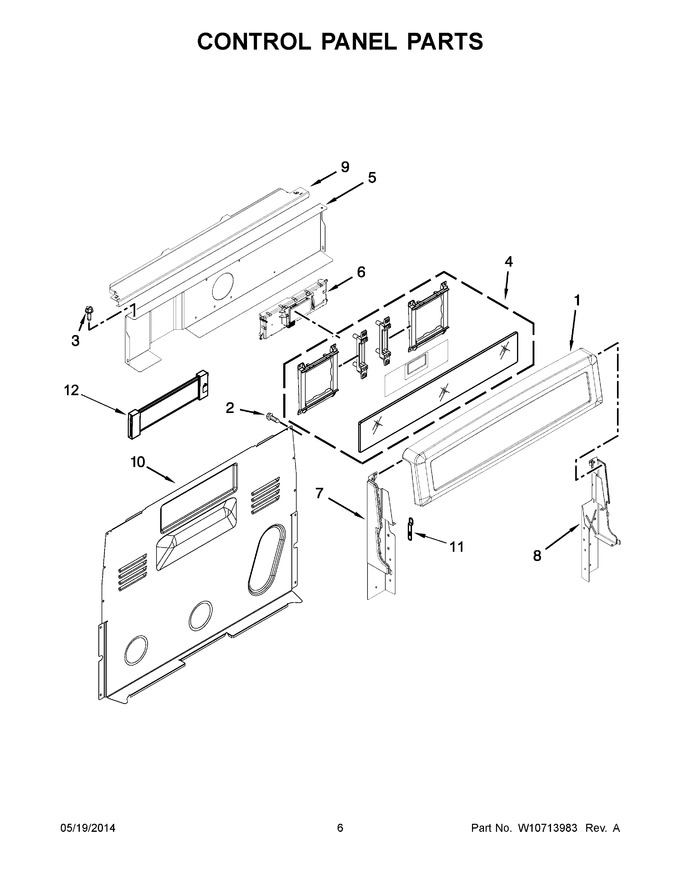

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10614437 | Panel, Backguard (stainless) |
|
$ 137.38 | |||||
| 2 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 3 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 4 | WPW10726780 | Active Overlay Assembly (stainless) (Replaces: W10324413) |
|
$ 731.60 | |||||
| 5 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 6 | WPW10686475 | Control, Board Mrc2 (Replaces: W10686475) |
|
Immediately | $ 328.90 | ||||
| 7 | W11404310 | Endcap (black (left Hand)) (Replaces: W10409002) |
|
$ 66.00 | |||||
| 8 | W10409003 | Endcap (black (right Hand)) |
|
$ 72.08 | |||||
| 9 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | 3196200 | Clip, Spring |
|
$ 8.96 | |||||
| 12 | WPW10318787 | Connector, Flex (Replaces: W10318787) |
|
$ 102.81 |
