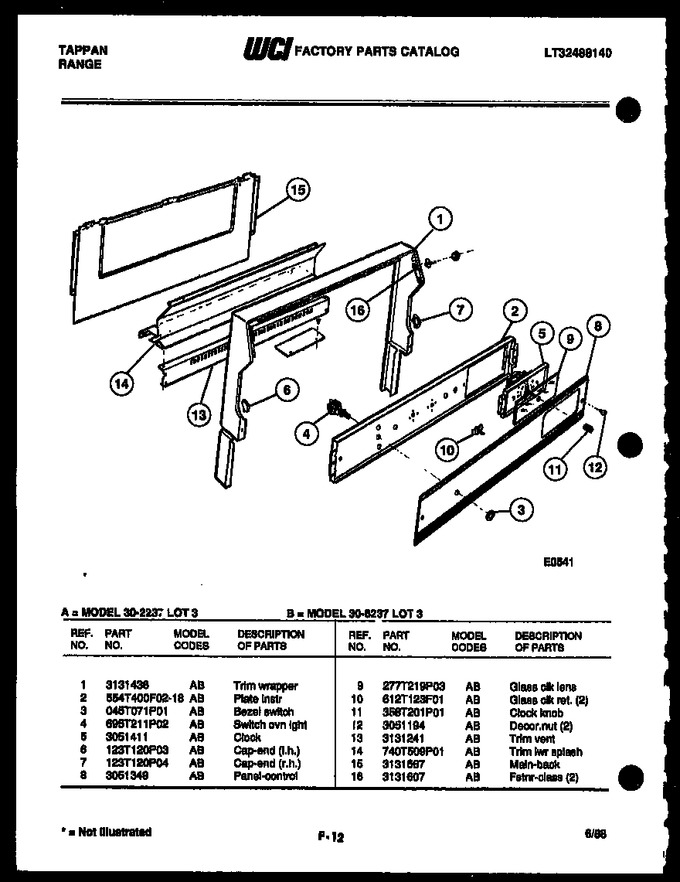

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Door Parts
04 - Broiler Drawer Parts
05 - Cooktop Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131436 | Trim Wrapper |
|
- | |||||
| 2 | 554T400F02-18 | Plate Instr |
|
- | |||||
| 3 | 045T071P01 | Bezel, Switch |
|
- | |||||
| 4 | 695T211P02 | Switch Ovn Lght |
|
- | |||||
| 5 | 3051411 | Clock |
|
- | |||||
| 6 | 123T120P03 | Cap-end (l.h.) |
|
- | |||||
| 7 | 123T120P04 | Cap-end (r.h.) |
|
- | |||||
| 8 | 3051349 | Panel-control |
|
- | |||||
| 9 | 277T219P03 | Glass Clk Lens |
|
- | |||||
| 10 | 612T123F01 | Glass Clk Ret. (2) |
|
- | |||||
| 11 | 358T201P01 | Clock Knob |
|
- | |||||
| 12 | 3051194 | Decor, Nut (2) |
|
- | |||||
| 13 | 3131241 | Trim-vent |
|
- | |||||
| 14 | 740T509P01 | Trim Lwr Splash |
|
- | |||||
| 15 | 3131567 | Main-back |
|
- | |||||
| 16 | 3131607 | Fstnr-class (2) |
|
- |
