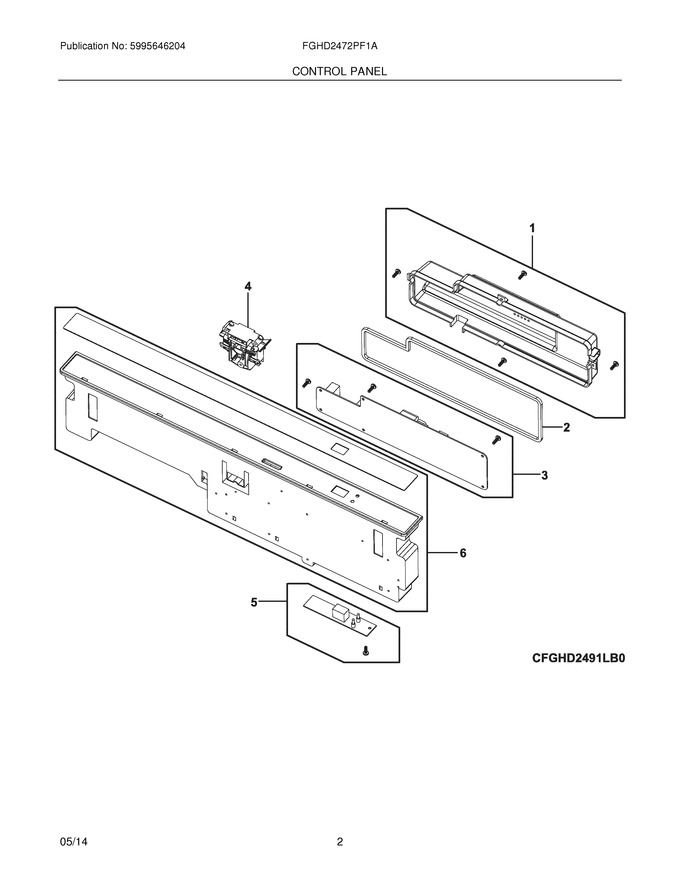

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304475567		Cover Assembly,pc Board ,w/screws				$ 29.66
2	5304475568		Gasket,pcb Cover				$ 13.47
F3	5304475569		Pc Board Assembly,main ,w/screws				$ 225.69
F4	5304475570		Latch,door			Immediately	$ 72.81
F5	5304475571		Pc Board Assembly,display ,w/screws				$ 135.90
F6	5304478319		Console Assembly,black ,w/overlay				$ 243.65
FNI	5304475611		Harness,wiring ,main				$ 209.58
NI	5304478366		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
