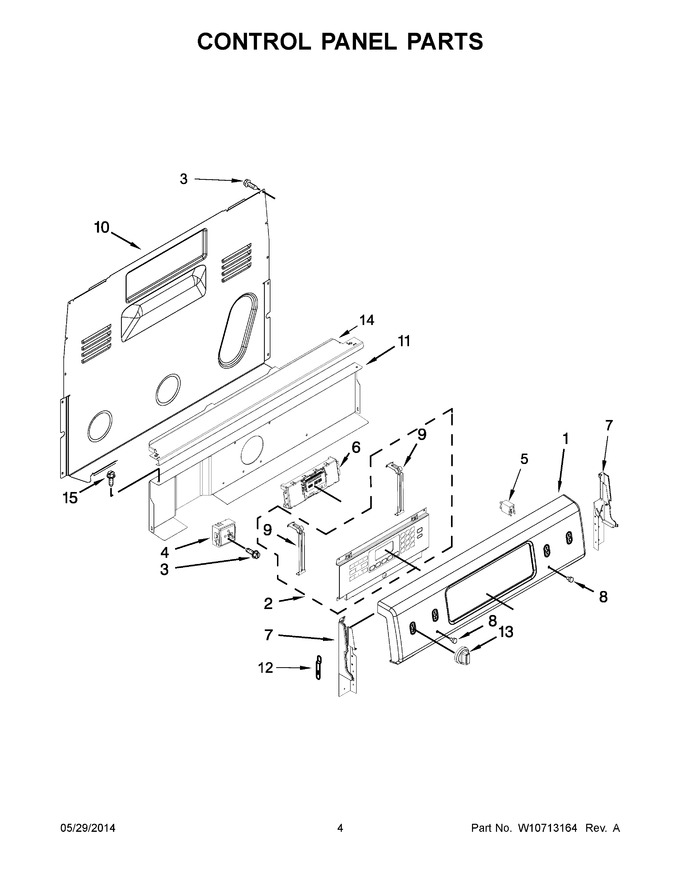

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10614433 | Panel, Backguard (stainless) |
|
$ 266.29 | |||||
| 2 | W10324427 | Assembly, Active Overlay |
|
$ 319.24 | |||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 4 | WPW10411934 | Switch, Infinite (left Rear) (Replaces: W10411934) |
|
Immediately | $ 98.45 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 47.15 | ||||
| 4 | WPW10434452 | Switch, Infinite (left Front & Right Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 77.68 | ||||
| 6 | WPW10340694 | Control, Mrc (Replaces: W10340694) |
|
$ 612.72 | |||||
| 7 | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 7 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 9 | W10318546 | Bracket, Control |
|
- | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 12 | 3196200 | Clip, Spring |
|
$ 8.96 | |||||
| 13 | W10854052 | Knob (stainless) (Replaces: W10324395) |
|
$ 25.83 | |||||
| 14 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 |
