SELECT A DIAGRAM

01 - Cover


03 - Freezer Drawer, Baskets


05 - Fresh Food Doors


07 - Cabinet


09 - Shelves


11 - Cooling System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Ice Maker


18 - Wiring Diagram


19 - Wiring Diagram


20 - Wiring Diagram

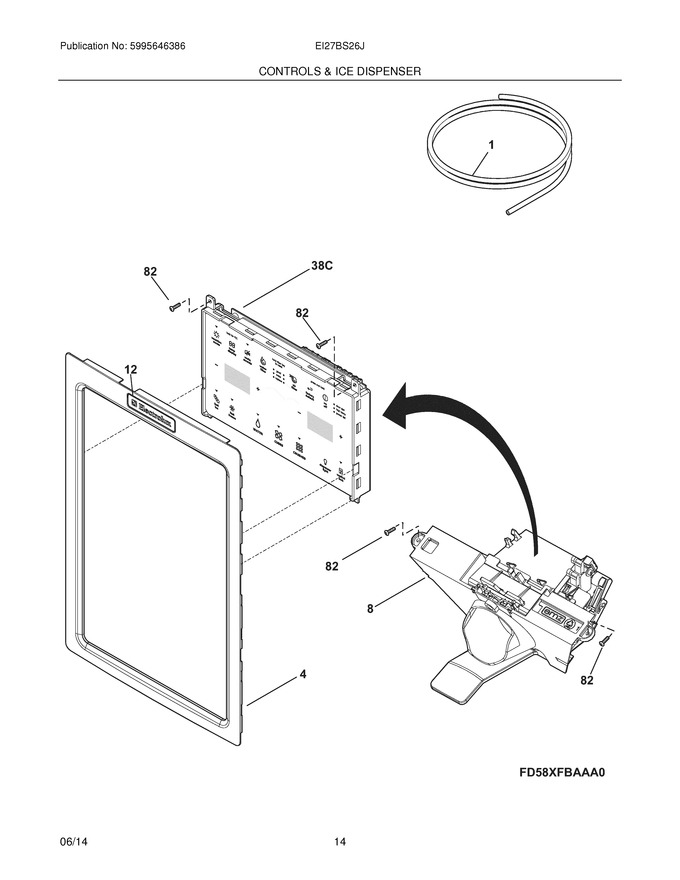

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976436		Tube-water,5/16 - 42`` ,yellow ,sd   (Replaces: 218976434)			Immediately	$ 8.51
4	241757503		Cover-module,white				$ 148.14
8	242100006		Module-dispenser,clear		Appelez-nous	-
12	241873303		Nameplate,white				$ 5.96
82	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
F38C	242102801		Board-control,assembly				$ 349.89
FNI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
FNI	241510904		Harness-dispenser,grounding				$ 60.96
NI	218976409		Tube-water,5/16 - 58`` ,natural   (Replaces: 218976405)			Immediately	$ 60.25
NI	241965906		Tube-water,5/16 - 67`` ,natural			Immediately	$ 24.10
NI	241806601		Connector-water,straight ,5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NI	242169404		Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension		Appelez-nous	-
NI	241964707		Tube-water,1/4 - 36`` ,green			Immediately	$ 18.43
NI	242220105		Tube-water,.315 - 56`` ,brown/tan		Appelez-nous	-
NI	241503901		Connector-water,straight ,5/16 To 1/4				$ 51.22

    View Diagram in Separate Window       Print Part List
