SELECT A DIAGRAM

01 - Cover Sheet

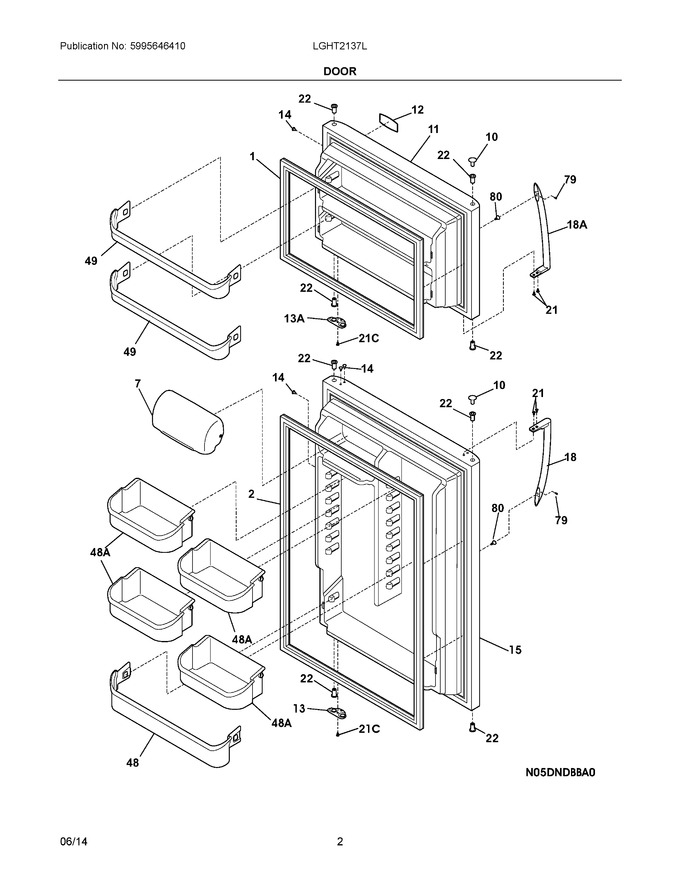

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241872505		Gasket-frzr Door, White, Magnetic   (Replaces: 242193205)				$ 179.22
2	242193213		Gasket-refr Door, White, Magnetic   (Replaces: 240542118)			Immediately	$ 190.22
7	240338313		Door, Dairy, Clear   (Replaces: 240338303)			Immediately	$ 80.80
10	240381301		Plug-button, White, Hinge Brg Hole, (2)			Immediately	$ 18.95
11	241798423		Door-frzr, White, Complete Assy				$ 444.63
12	242015201		Label-nameplate			Immediately	$ 6.90
13	240312421		Door Stop, White, Ref   (Replaces: 240312403)				$ 15.17
14	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 18.20
15	241798529		Door-refr, White, Complete Assy				$ 447.09
18	242084804		Handle-door, White, Refr-rh/frzr-lh		Appelez-nous	-
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507146		Bearing-hinge, Natural Color   (Replaces: 240527101)			Immediately	$ 7.59
48	240338101		Bin-door			Immediately	$ 52.37
49	240495804		Bin-door, Pseudo, Frzr			Immediately	$ 43.29
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder, #10 Ab, Handle Mounting			Immediately	$ 18.60
13A	240312414		Door Stop, White, Frzr				$ 19.13
18A	242084801		Handle-door, White, Refr-lh/frzr-rh		Appelez-nous	-
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
48A	241808201		Bin-door, Gallon			Immediately	$ 79.97

    View Diagram in Separate Window       Print Part List
