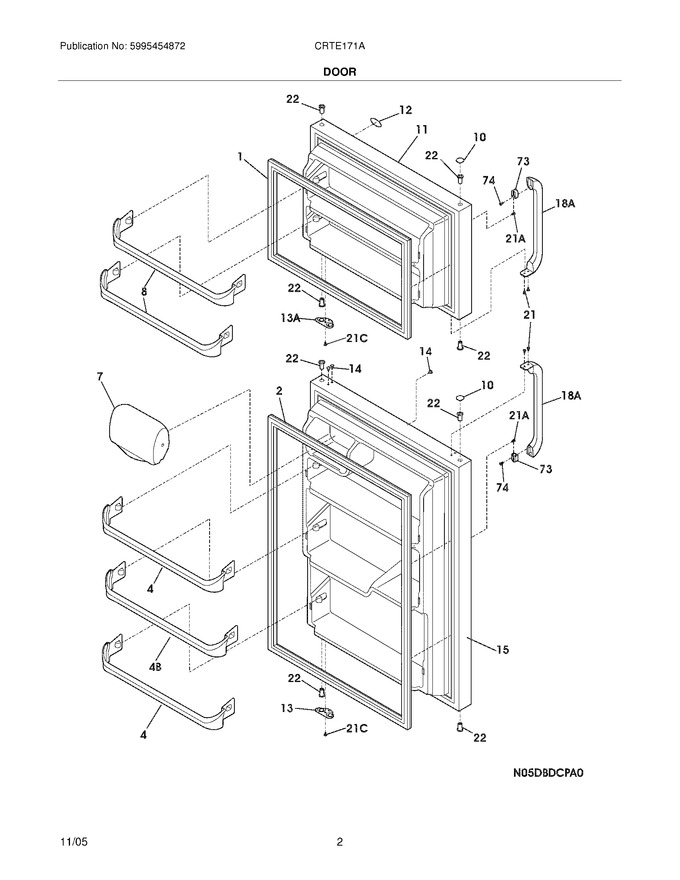

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241872501 | Gasket-frzr Door,white ,magnetic (Replaces: 240554113) |
|
Immediately | $ 134.19 | ||||
| 2 | 241872504 | Gasket-refr Door,white ,magnetic (Replaces: 240542116) |
|
Immediately | $ 183.39 | ||||
| 4 | 240535101 | Rack-door |
|
Immediately | $ 28.57 | ||||
| 7 | 240337701 | Door-dairy,w/o Graphics ,white |
|
Immediately | $ 34.02 | ||||
| 8 | 240535001 | Rack-door |
|
Immediately | $ 48.20 | ||||
| 10 | 240381302 | Plug-button,bisque ,hinge Brg Hole ,(2) |
|
$ 19.06 | |||||
| 11 | 240420102 | Door,frzr ,bisque |
|
- | |||||
| 12 | 240415206 | Label-nameplate,bisque |
|
- | |||||
| 13 | 240312423 | Door Stop,bisque ,ref (Replaces: 240312407) |
|
$ 12.13 | |||||
| 14 | 240494002 | Plug-button,bisque |
|
$ 41.12 | |||||
| 15 | 240420202 | Door,refr ,bisque |
|
$ 359.84 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color (Replaces: 240527101) |
|
Immediately | $ 7.59 | ||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw,cr Pan Hd `10-16 X 0.500 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 13A | 240312408 | Door Stop,bisque ,frzr |
|
- | |||||
| 18A | 5304537010 | Handle-door,bisque ,w/block & Screw (Replaces: 218428119) |
|
- | |||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 (Replaces: 240521301) |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 4B | 240535201 | Rack-door |
|
Immediately | $ 30.34 |
