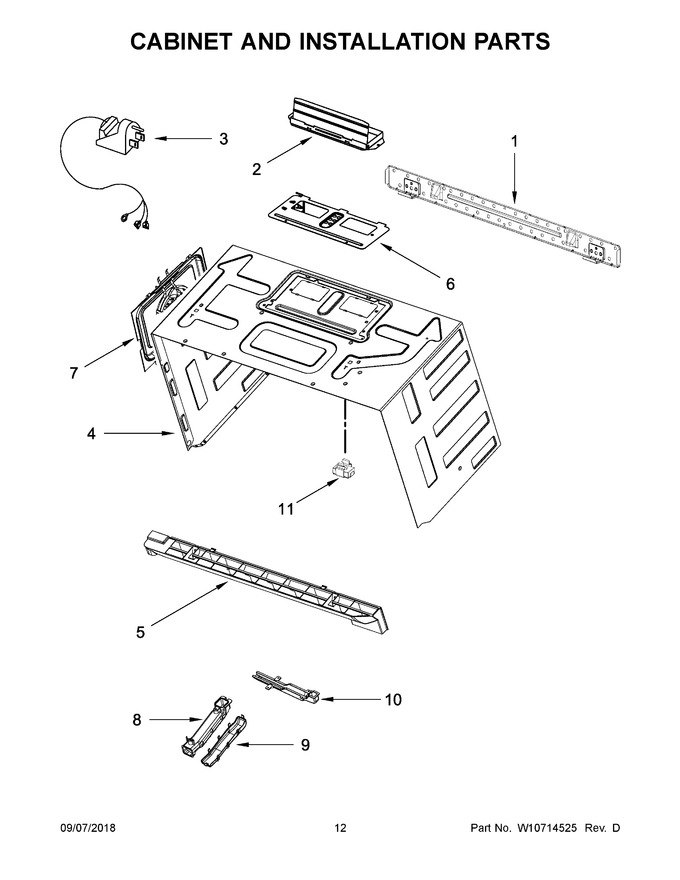

07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 21.16 | ||||
| 2 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 3 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 18.48 | |||||
| 4 | W10818229 | Case, Outer (black) (Replaces: W10571408) |
|
$ 228.66 | |||||
| 5 | W10701701 | Grille, Vent (black) |
|
$ 71.01 | |||||
| 6 | W10625423 | Cover, Fan Motor |
|
$ 69.87 | |||||
| 7 | WPW10571554 | Assembly, Convection Motor And Fan (Replaces: W10571554) |
|
$ 274.88 | |||||
| 8 | W10740434 | Duct, Cooling (upper) (Replaces: W10533488) |
|
- | |||||
| 9 | W10533489 | Duct, Cooling (bottom) |
|
- | |||||
| 10 | W10570212 | Air Duct, Turntable Motor |
|
- | |||||
| 11 | W10596040 | Assembly, Mounting Nut |
|
Immediately | $ 8.30 | ||||
| NI | W10532916 | Miscellaneous Parts, Harness, Bottom Lamp |
|
$ 134.57 | |||||
| NI | W10670896 | Miscellaneous Parts, Harness, Fade In / Fade Out |
|
- | |||||
| NI | W10566563 | Miscellaneous Parts, Harness, Smart Pop |
|
- | |||||
| NI | W10539840 | Miscellaneous Parts, Harness, Pcba Ground Wire |
|
$ 21.50 | |||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper (english & French) |
|
Immediately | $ 6.47 | ||||
| NI | W10508741 | Miscellaneous Parts, Wire, Door Control Cable |
|
$ 20.21 | |||||
| NI | W10190020 | Miscellaneous Parts, Template, Upper (english & Spanish) |
|
$ 56.21 | |||||
| NI | W10530090 | Miscellaneous Parts, Harness, Headlamp And Turntable |
|
- | |||||
| NI | W10566562 | Miscellaneous Parts, Cable, Fade In / Fade Out |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10571450 | Insulation, Back |
|
- | |||||
| NI | W10571451 | Insulation, Top |
|
- | |||||
| NI | W10571454 | Insulation, Bottom |
|
- | |||||
| NI | W10821385 | Miscellaneous Parts, Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 88.90 | ||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| NI | W10711111 | Miscellaneous Parts, Harness, Main |
|
- |
