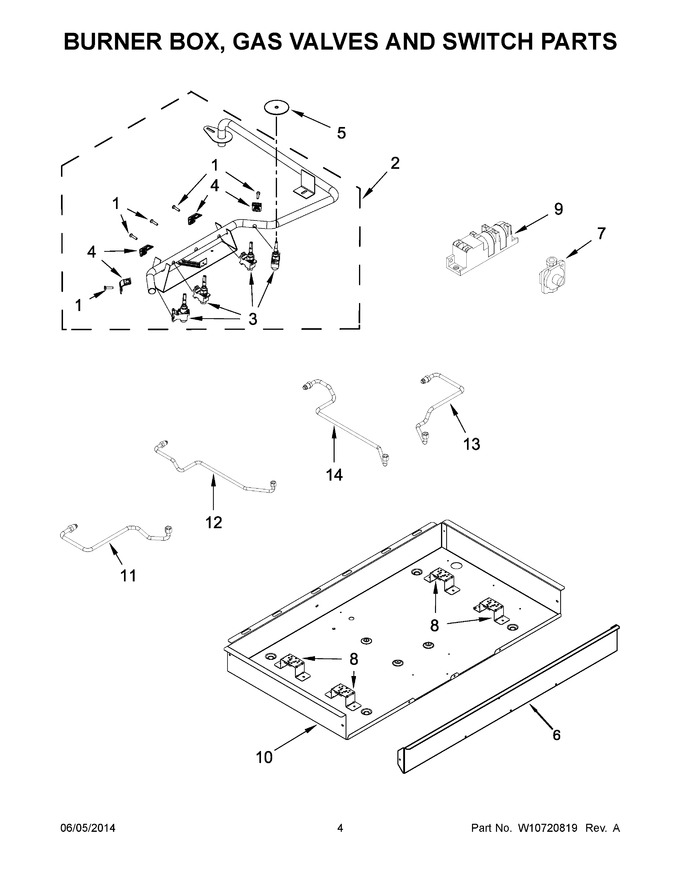

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw, Valve Bracket				$ 10.15
2	W10594394		Assembly,manifold				$ 270.68
3	W11256503		Valve, Single (left Rear & Right Rear)   (Replaces: W10594391)			Immediately	$ 236.01
3	W10859922		Valve, Single (right Front)   (Replaces: W10594393)				$ 69.40
3	W10597157		Valve, Single (left Front)				$ 225.85
4	8287055		Bracket, Single Valve				$ 65.54
5	W10140571		Seal, Switch Shaft				$ 6.60
6	W10721889		Panel, Front   (Replaces: W10614950)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10132345)			Immediately	$ 177.34
8	W10594429		Bracket, Orifice Holder				$ 20.00
9	W11693498		Module, Spark   (Replaces: W10475148)				$ 90.61
10	W10735656		Box, Burner   (Replaces: W10714616)		Appelez-nous	-
11	W10566287		Tubing, Gas Burner (left Front)		Appelez-nous	-
12	W10566288		Tubing, Gas Burner (left Rear)		Appelez-nous	-
13	W10566290		Tubing, Gas Burner (right Front)		Appelez-nous	-
14	W10566289		Tubing, Gas Burner (right Rear)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10558556		Harness, Main				$ 157.94
NI	W10392003		Cord, Power				$ 138.57
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	W10676661		Kit, Lp Conversion				$ 36.11
NI	W10685483		Accessories, Griddle Knobs				$ 83.15
NI	W10698166		Accessories, Stainless Kit, Grates				$ 73.02
NI	W10594440		Accessories, Gray		Appelez-nous	-
