View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

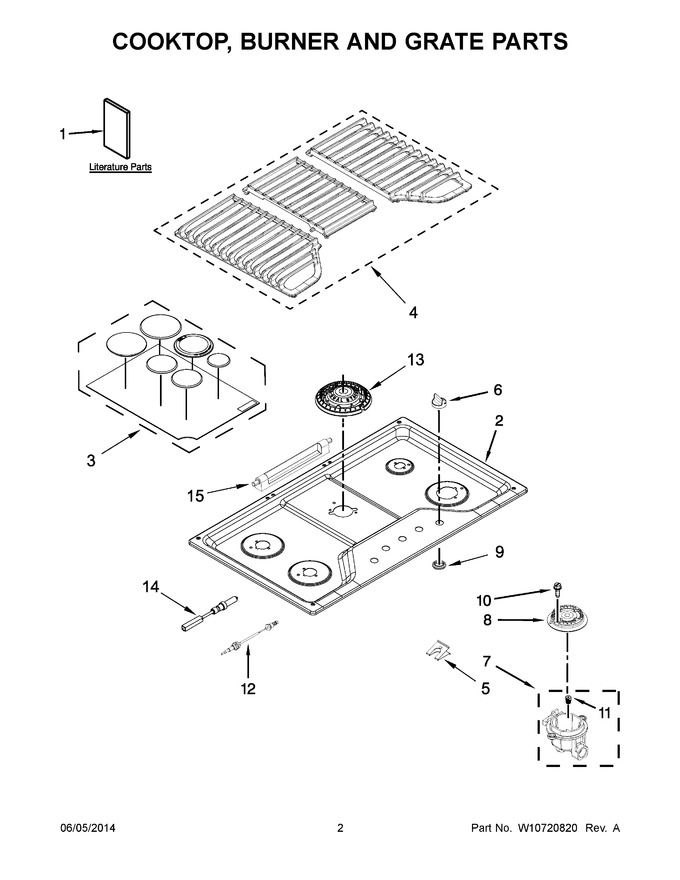

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10672375 | Undercounter Install Instructions |
|
- | |||||
| 1 | W10648064 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10597144 | Installation Instructions |
|
- | |||||
| 2 | W10597078 | Cooktop (stainless) |
|
- | |||||
| 3 | W10833886 | Kit, Burner Cap (black) (Replaces: W10613386) |
|
$ 121.71 | |||||
| 4 | W11170857 | Kit, Grate (black) (Replaces: W10597187) |
|
$ 305.73 | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 65.93 | |||||
| 6 | WPW10594481 | Knobs, Cooktop (stainless) (Replaces: W10594481) |
|
Immediately | $ 40.02 | ||||
| 7 | W10597166 | Holder, Orifice (9.1k) (left Front & Left Rear) |
|
$ 63.25 | |||||
| 7 | W10611441 | Holder, Orifice (17k) (center) |
|
$ 64.51 | |||||
| 7 | W10594399 | Holder, Orifice (5k) (right Rear) |
|
$ 33.26 | |||||
| 7 | W10613381 | Holder, Orifice (10k) (right Front) |
|
$ 61.77 | |||||
| 8 | WP8286814 | Head, Burner (left Front, Left Rear & Right Front) (Replaces: 8286814) |
|
$ 106.79 | |||||
| 8 | WP8286813 | Head, Burner (right Rear) (Replaces: 8286813) |
|
$ 85.50 | |||||
| 9 | W11206740 | Grommet (black) (Replaces: W10625915) |
|
$ 7.81 | |||||
| 10 | WP8287059 | Screw (Replaces: 8287059) |
|
Immediately | $ 7.02 | ||||
| 11 | W10652710 | Orifice (left Front & Left Rear) |
|
$ 23.37 | |||||
| 11 | W10791076 | Orifice (right Front) (Replaces: W10151347) |
|
$ 85.86 | |||||
| 11 | W10652706 | Orifice (center, Simmer) |
|
$ 85.68 | |||||
| 11 | W10791073 | Orifice (center, Main) (Replaces: W10609592) |
|
$ 80.11 | |||||
| 11 | W10791082 | Orifice (right Rear) (Replaces: W10652711) |
|
$ 77.40 | |||||
| 12 | W11507532 | Wiring, Electrode (left Rear & Right Rear) (Replaces: W10541843) |
|
Immediately | $ 52.19 | ||||
| 12 | W11507531 | Wiring, Electrode (left Front & Right Front) (Replaces: W10541842) |
|
$ 52.13 | |||||
| 13 | W10811599 | Spreader, Flame (Replaces: W10611434) |
|
$ 186.16 | |||||
| 14 | W10852959 | Electrode (stack) (center) (Replaces: W10611438) |
|
Immediately | $ 66.09 | ||||
| 15 | W10826075 | Hinge, Grate (Replaces: W10670772) |
|
$ 94.24 |
