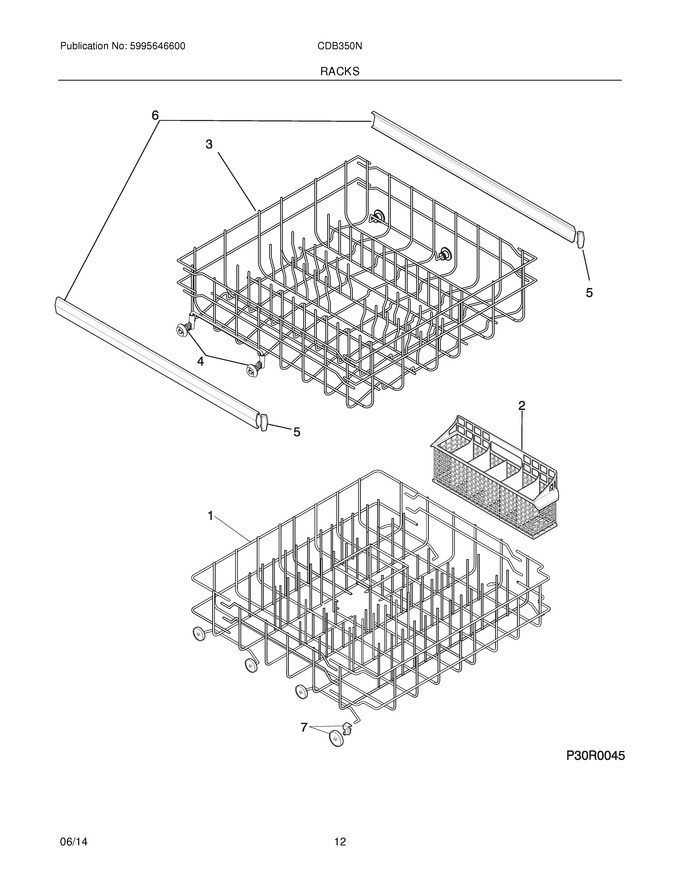

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154331604 | Rack Assy,lower |
|
$ 188.20 | |||||
| 2 | 5304509753 | Basket,silverware ,white (Replaces: 5304489877) |
|
Immediately | $ 36.87 | ||||
| 3 | 5304535380 | Rack Assy,upper (Replaces: 154331502) |
|
Immediately | $ 150.71 | ||||
| 4 | 154522902 | Wheel & Bushing Assy,grey ,upper Rack ,(8) |
|
$ 39.54 | |||||
| 5 | 5304506510 | Cap,slide ,grey ,(4) (Replaces: 5304440996) |
|
Immediately | $ 7.23 | ||||
| 6 | 154597801 | Slide,rack ,upper ,(2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,grey ,lower Rack ,(8) (Replaces: 154174503) |
|
Immediately | $ 12.75 | ||||
| NI | 5304488230 | Plate,decorative ,grey ,front |
|
- |
