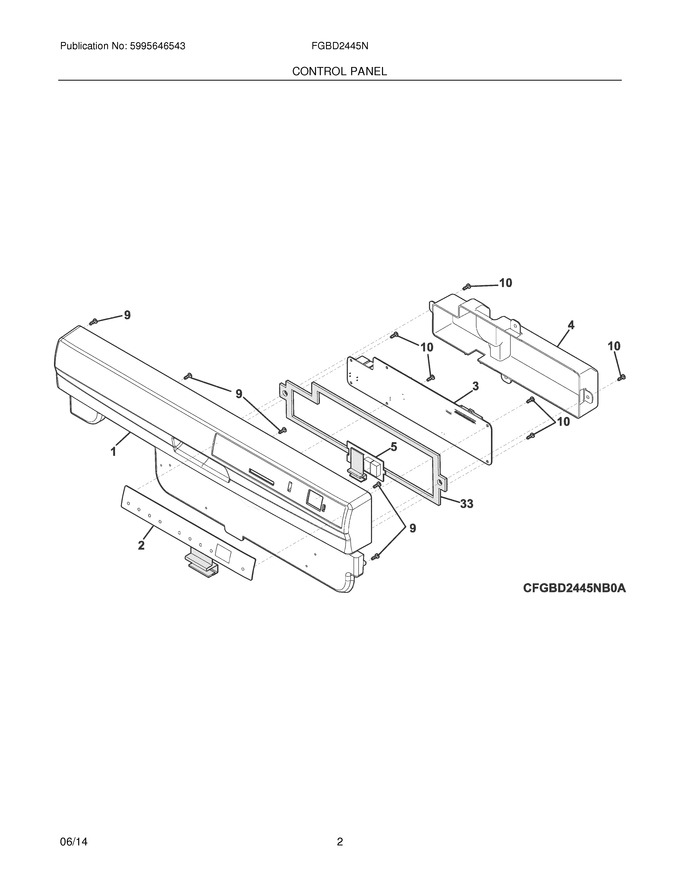

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154872205		Console,control ,black				$ 79.85
4	154718801		Cover,control				$ 35.44
9	154783101		Screw,plt ,8-10			Immediately	$ 7.09
10	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
33	154478901		Gasket,cover				$ 61.66
F2	807327902		Insert,control Panel ,black				$ 169.31
F3	807024601		Control Assembly,electronic				$ 286.28
F5	154734301		Display Board,7 Segment				$ 96.65
FNI	154870201		Harness,wiring ,main		Appelez-nous	-
NI	808612206		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
