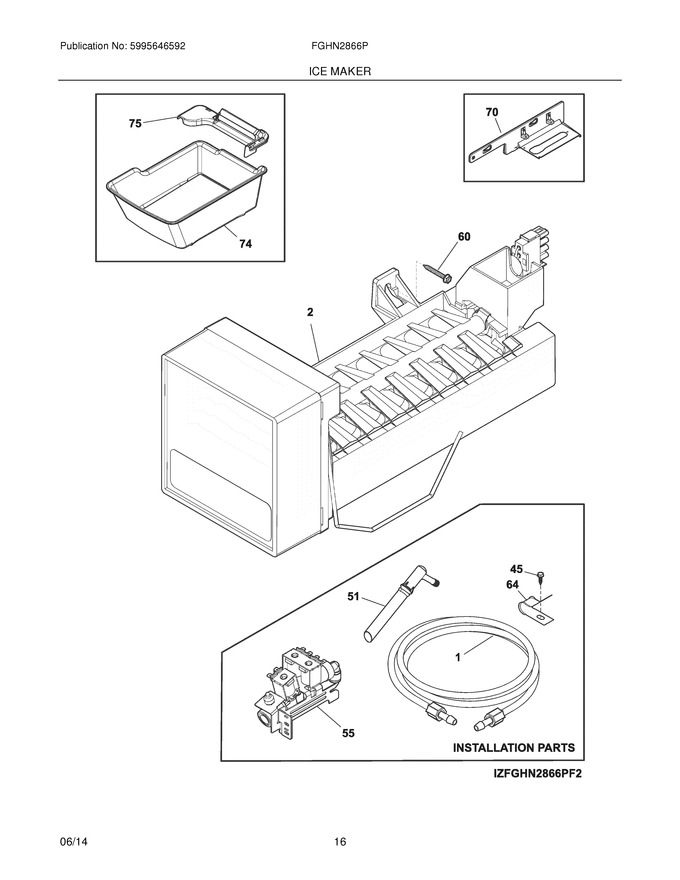

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242220204 | Tube-water Inlet,.315 - 93.50`` ,brown/tan (Replaces: 242220201) |
|
Immediately | $ 40.32 | ||||
| 45 | 5304453923 | Screw,hex Hd Wshr ,no.8-32 X 1/2 |
|
- | |||||
| 51 | 242169406 | Tubing Assembly,water ,1/4 - 44`` ,green |
|
- | |||||
| 64 | 5304453921 | Clamp-cable |
|
- | |||||
| 70 | 242041701 | Bracket-ice Maker |
|
$ 70.88 | |||||
| 74 | 242127901 | Container-ice |
|
$ 197.17 | |||||
| 75 | 242240101 | Shield,ice Bucket ,wide |
|
$ 76.92 | |||||
| F2 | 5303918493 | Ice Maker,radius Cube ,115 V ,service (Replaces: 241798219) |
|
Immediately | $ 231.95 | ||||
| F55 | 242252702 | Valve,solenoid ,triple |
|
Immediately | $ 132.71 | ||||
| NI | 240396801 | Clamp,tube/wiring ,nylon ,black/natural |
|
$ 19.13 | |||||
| NI | 242220204 | Tube-water Inlet,.315 - 93.50`` ,natural |
|
Immediately | $ 40.32 | ||||
| NI | 218709101 | Screw,hex Head ,10-32 X 0.500 |
|
$ 6.38 | |||||
| NI | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NI | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| NI | 240555002 | Screw,hex Washer Head ,8-32t X 0.375 (Replaces: 241690701) |
|
Immediately | $ 13.46 |
