AGM639 | TransGlobal : Appliance Model Lookup

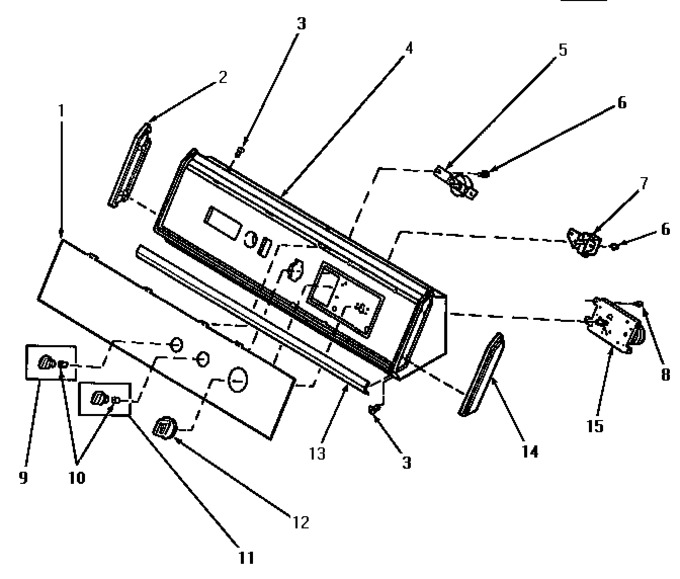

Diagram #	Part Number	Description	Availability	Ships	Price
1	62318	Panel,graphic	Appelez-nous	-
2	31249	Cap,end-l.h.-chrome	Appelez-nous	-
3	31752	Screw,no.8abx3/4 Pozidri	Appelez-nous	-
4	61857	Control Hood Assembly	Appelez-nous	-
5	62173	Switch, Temperature Select			$ 47.77
6	31260	Screw, No.8 X 3/8 Ind H			$ 2.68
7	59447	Signal,rotary	Appelez-nous	-
8	WP90767	Screw (Replaces: Y59616)		Immediately	$ 7.04
9	WP36701W	Assy,knob-rotary-white (Replaces: 33688)		Immediately	$ 44.31
10	10519	Retainer	Appelez-nous	-
11	DE81-05129A	Assy,knob-rotary-white (Replaces: 62235)			$ 47.05
12	DE81-07748A	Assy,timer Knob & Skirt White (Replaces: 62234)			$ 133.40
13	61849R	Trim, Cont Pnl Top	Appelez-nous	-
14	31248	Cap,end-r.h.-chrome	Appelez-nous	-
15	59421	Timer, 5 Cycle	Appelez-nous	-
	NOTE:	Note 2: Starting Serial No. S6564538ze, All Home Laundry Dryers Were Manufactured With A New Cylinder Roller. It Is Equipped With A Longer Bearing, So The Thr	Appelez-nous	-
NI	45378	Wire,12ga-brn Xreplace	Appelez-nous	-
NI	45256	14 Gauge Wire, Blue	Appelez-nous	-
NI	45333	14 Gauge Wire, Yellow / Black	Appelez-nous	-
NI	45350	14 Gauge Wire, Green	Appelez-nous	-
NI	45375	12 Gauge Wire, White			$ 3.69
NI	45060	Wire,18ga-org/blu Xreplace	Appelez-nous	-
NI	45035	Wire,18ga-red/yel	Appelez-nous	-
NI	45431	Wire,12ga-org/blk Xreplace	Appelez-nous	-
NI	45422	12 Gauge Wire, Pink / Black	Appelez-nous	-
NI	45383	Wire,12ga-yel Xreplace	Appelez-nous	-
NI	45381	Wire,12ga-blu Xreplace	Appelez-nous	-
NI	45380	Wire,12ga-org Comml.			$ 8.43
NI	45250	Wire,14ga-wht	Appelez-nous	-
NI	Y0045047	False Door Panel Insert W/a	Appelez-nous	-
NI	45039	18 Gauge Wire, Brown / Red	Appelez-nous	-
NI	45000	Wire,18ga-wht Xreplace	Appelez-nous	-
NI	62218	Assy,wiring Harness	Appelez-nous	-
NI	Y0045009	Lead Wires	Appelez-nous	-
NI	Y0045012	Screw	Appelez-nous	-
NI	0045014	Rd Hd Screw	Appelez-nous	-
NI	45002	18 Gauge Wire, Red	Appelez-nous	-
NI	0045019	Center Elem Assy	Appelez-nous	-
NI	45003	Wire,18ga-brn Xreplace	Appelez-nous	-
NI	0045056	Drawer Liner Pk-471	Appelez-nous	-
NI	0045091	Roller Arm	Appelez-nous	-
NI	Y0045258	Wire Assy El-red Switches	Appelez-nous	-
NI	0045353	Top Burner Assy	Appelez-nous	-
NI	Y0045404	Clip	Appelez-nous	-
NI	0045475	Sail Switch	Appelez-nous	-
NI	Y0045016	Pan Hd Screw	Appelez-nous	-
NI	45011	Wire,18ga-wht/red Xreplace	Appelez-nous	-
NI	45051	18 Gauge Wire, Pink / Blue	Appelez-nous	-
NI	45044	18 Gauge Wire, Brown / Yellow	Appelez-nous	-
NI	Y45037	18 Gauge Wire, Brown / White	Appelez-nous	-
NI	0045480	Latch Assy	Appelez-nous	-
NI	45029	18 Gauge Wire, Red / Black			$ 10.27
NI	45026	18 Gauge Wire, Black / Yellow	Appelez-nous	-
NI	45001	Wire, 18 Ga			$ 0.78
NI	45015	Wire,18ga-wht/blu Xreplace	Appelez-nous	-
NI	45053	18 Gauge Wire, Pink / Yellow			$ 91.41
NI	45010	Wire,18ga-wht/blk Xreplace	Appelez-nous	-
NI	45008	Wire,18ga-yel Xreplace	Appelez-nous	-
NI	45007	Wire,18ga-gry Xreplace	Appelez-nous	-
NI	45006	Wire,18ga-blu Xreplace	Appelez-nous	-
NI	Y45005	18 Gauge Wire, Orange	Appelez-nous	-
NI	45004	Wire,18ga-pnk Xreplace	Appelez-nous	-
NI	45022	Wire,18ga-blk/pnk Xreplace	Appelez-nous	-
NI	45104	18 Gauge Wire, Purple	Appelez-nous	-
NI	45103	18 Gauge Wire, Green / Red	Appelez-nous	-
NI	45100	Wire,18ga-grn Xreplace	Appelez-nous	-
NI	45088	Wire,18ga-yel/blu Xreplace	Appelez-nous	-
NI	45083	18 Gauge Wire, Yellow / Black	Appelez-nous	-
NI	45377	12 Gauge Wire, Red	Appelez-nous	-
NI	45074	Wire,18ga-gry/blk Xreplace	Appelez-nous	-
NI	45255	14 Gauge Wire, Orange	Appelez-nous	-
NI	45066	18 Gauge Wire, Blue / Red	Appelez-nous	-
NI	45065	Wire,18ga-blu/blk Xreplace	Appelez-nous	-
NI	45376	Wire,12ga-blk Xreplace	Appelez-nous	-
NI	45064	18 Gauge Wire, Blue / White	Appelez-nous	-
NI	45061	18 Gauge Wire, Orange / Gray			$ 31.45
NI	45080	Wire,18ga-gry/yel Xreplace	Appelez-nous	-
NI	45251	14 Gauge Wire, Black	Appelez-nous	-
